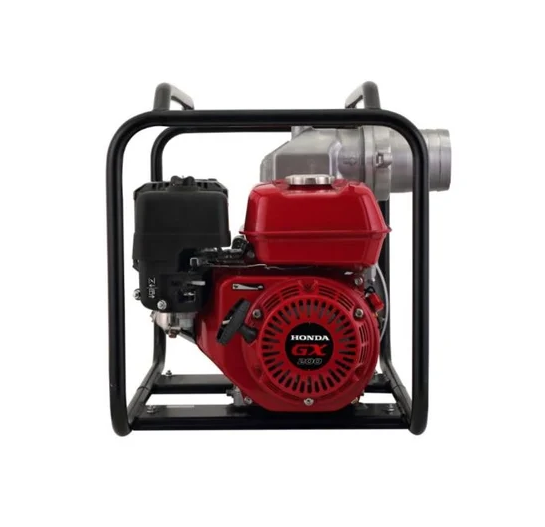

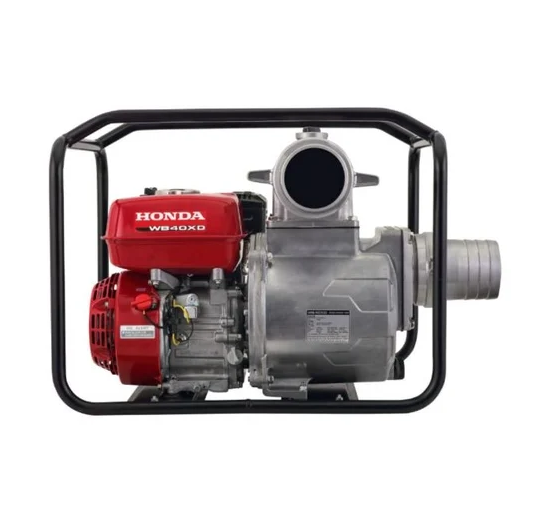

Honda WB40XD Water Pump set

Model WB40XD

Overview

Honda WB40XD Water pump set is a high-performance 4-inch petrol-operated self-priming water pump set designed for high-volume irrigation, water transfer and general water management applications.

Detailed Description

Honda WB40XD Water pump set is a high-performance 4-inch petrol-operated self-priming water pump set designed for high-volume irrigation, water transfer and general water management applications. Powered by the reliable Honda GX200D 196 cc 4-stroke petrol engine, the WB40XD delivers an impressive maximum water discharge of up to 1,750 liters per minute at a total head of 20 meters.

The pump is equipped with 100 mm (4-inch) suction and discharge ports and uses a centrifugal self-priming design for convenient and efficient operation. Its compact 35 kg construction and full-frame design make it comparatively easy to transport between farms and work locations.

The Honda WB40XD is particularly suitable for water-intensive agricultural crops such as rice, sugarcane and vegetables, as well as general water-transfer and dewatering applications where high-volume pumping is required.

Key Highlights:

Honda GX200D 196 cc petrol engine
4-inch × 4-inch water pump
Maximum discharge: 1,750 L/min
Total head: 20 metres
Suction head: 4 metres
100 mm suction and discharge ports
Centrifugal self-priming pump
Maximum engine power: 4.3 kW @ 3,600 RPM
3.1 L fuel tank
Recoil starting system
Dual-type air cleaner
Air-cooled engine
Approx. 35 kg dry weight
Compact full-frame construction
Ideal for agricultural irrigation and high-volume water transfer

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Specification	Honda WB40XD
Model	WB40XD
Pump Type	Centrifugal, Self-Priming
Pump Size	4 × 4 inch
Suction Port	100 mm / 4 inch
Discharge Port	100 mm / 4 inch
Maximum Discharge	1,750 L/min
Total Head	20 m
Suction Head	4 m
Engine Model	Honda GX200D
Engine Type	4-Stroke Petrol, Air-Cooled
Engine Displacement	196 cc
Maximum Power	4.3 kW @ 3,600 RPM
Fuel	Petrol
Fuel Tank Capacity	3.1 L
Starting System	Recoil Start
Air Cleaner	Dual Type
Continuous Running Time	Approx. 1.4 hours
Dry Weight	35 kg
Dimensions (L × W × H)	625 × 425 × 495 mm
*Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability *

Applications & Uses

Agricultural irrigation
Rice and sugarcane irrigation
Vegetable crop irrigation
Farm and field water transfer
Pumping water from canals and ponds
Water transfer between tanks
Construction-site water transfer
General high-volume water pumping
Drainage and dewatering applications
