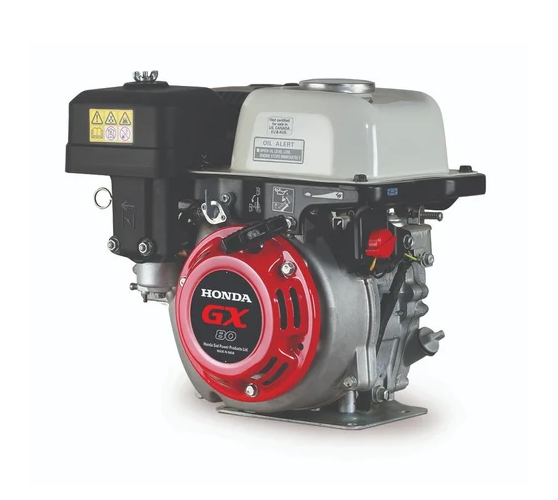

Honda GX80 Petrol General Purpose Engine

Model GX80

Overview

Honda GX80 Petrol General Purpose Engine is a compact and reliable 4-stroke engine designed for powering a variety of construction, agricultural, industrial and commercial equipment.

Detailed Description

The Honda GX80 Petrol General Purpose Engine is a compact 4-stroke petrol engine designed to provide reliable and efficient power for light-duty construction, agricultural, industrial and commercial equipment. Its compact design makes it suitable for applications where dependable performance and easy integration into machinery are required.

Key Features

4-stroke petrol engine
Compact and lightweight design
Air-cooled operation
Reliable power delivery
Fuel-efficient operation
Easy starting and convenient operation
Durable construction for regular use
Suitable for a variety of engine-driven equipment
Low-maintenance design
Suitable for construction and industrial applications

Additional Details

The OHC design is driven by a maintenance-free, low-noise timing belt, which makes the engine more compact and lightweight
A special cast iron cylinder sleeve and a high carbon steel, dual ball-bearing crankshaft ensure a high durability and reliability
The unique OHC layout combined with a large-capacity muffler reduces engine noise to low levels for better user-friendliness
Meets world's most stringent environmental legislation
A compact combustion chamber with high thermal efficiency ensures low fuel consumption

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

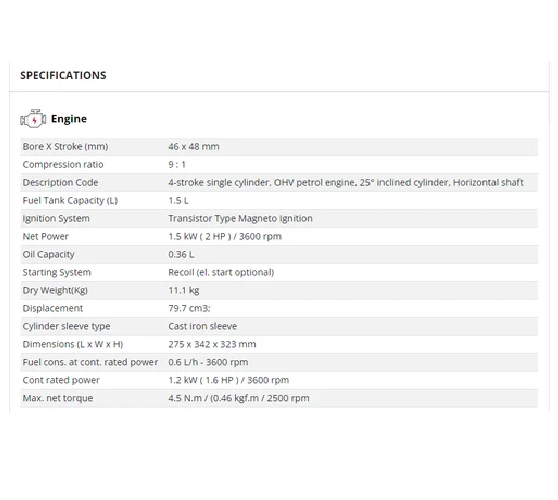

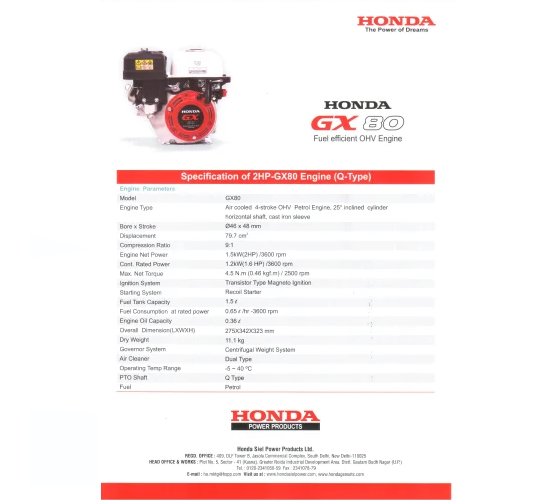

Technical Specifications

Power Rating	2 hp
Engine Displacement	79.7 cc
Starting System	Recoil Start
Application	Agriculture, Concrete Mixer, Construction Equip, Power Sprayer, Pump Set
Cooling System	Air Cooled
Brand	Honda
Number Of Cylinders	One
Type	4 Stroke
Model Name/Number	GX80
Engine Compatibility	General Purpose Engine
Power	1.5 kW (2 HP)
Displacement	79.7 cm3
Dry Weight	11.1 kg
Engine Type	4-stroke single cylinder, OHV petrol engine, 25 Degree inclined cylinder, Horizontal shaft
Fuel Tank Capacity	2 L
Engine Speed	3600 rpm
Bore X Stroke	46 x 48 mm
Hp Range	2 HP
Fuel Capacity	1.5 Lit
Ignition System	Transistor Type Magneto Ignition
Fuel Consumption Ratio	0.6 Lit/Hr at cont. rated power
Features	Most Fuel-efficient engine in 80 cc category
Usage/Application	Agriculture Sprayers, Needle Vibrator
Lubrication System	Splash
Net Power Output	1.5 kW ( 2 HP ) / 3600 rpm
Piston Displacement	79.7 cm3
Net Torque	Max Net Torque - 4.5 N.m / (0.46 kgf.m / 2500 rpm
Oil Capacity	0.36 Lit
Color	Cowl - Red & Fuel Tank - Cream
Weight	11.1 Kg Dry Weight
Compression Ratio	(9:1)
Country of Origin	Made in India

Applications & Uses

Small Plate Compactors
Concrete Mixers
Water Pumps
Generators
Small Construction Equipment
Agricultural Machinery
Garden & Landscaping Equipment
Industrial Machinery
Other portable engine-driven equipment
