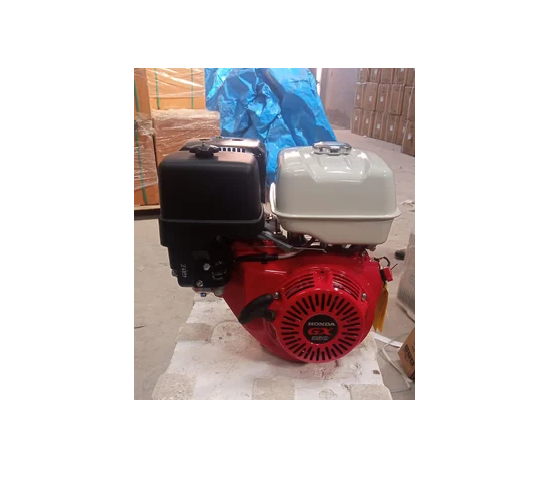

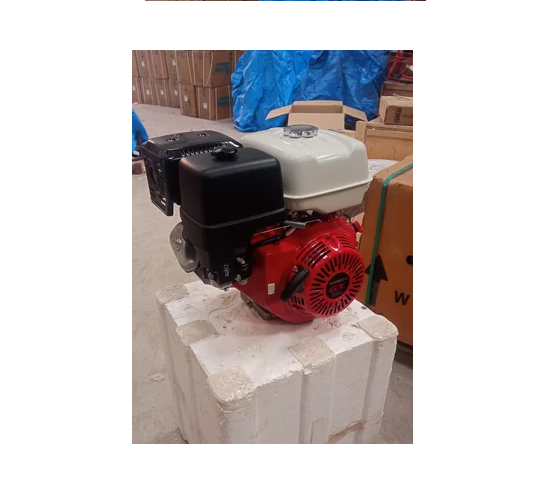

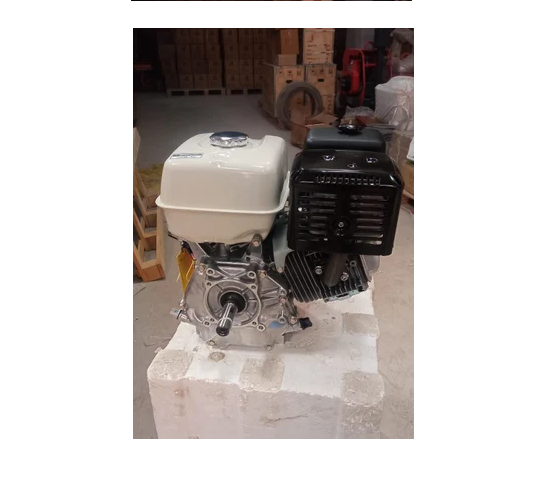

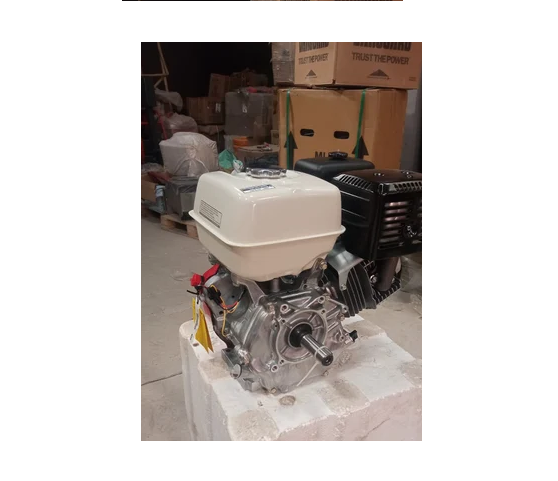

HONDA GX390 Petrol Engine

Model GX390

Overview

The Honda GX390 is a heavy-duty, air-cooled 4-stroke petrol engine designed for reliable power delivery in construction, agricultural, industrial and commercial equipment.

Detailed Description

The Honda GX390 is a heavy-duty, air-cooled 4-stroke petrol engine designed for reliable power delivery in construction, agricultural, industrial and commercial equipment. It features a 389 cc displacement, horizontal PTO shaft and a maximum net output of 11.7 HP (8.7 kW) at 3,600 RPM.

Key Features

Engine Type: Air-cooled, 4-stroke OHV petrol engine
Displacement: 389 cc
Maximum Net Power: 11.7 HP / 8.7 kW @ 3,600 RPM
Maximum Net Torque: 26.5 Nm @ 2,500 RPM
Bore × Stroke: 88 × 64 mm
Compression Ratio: 8.2:1
Shaft: Horizontal PTO shaft
Ignition: Digital CDI with variable ignition timing
Starting: Recoil starter; electric-start versions/options available depending on configuration
Fuel Tank: 6.1 litres
Engine Oil Capacity: 1.1 litres
Cooling: Air cooled
Dry Weight: Approximately 31.7 kg
Dimensions: Approximately 406 × 460 × 448 mm, depending on configuration

Additional Details

2 Years Warranty by Default Manufacturer
The OHV design enhances combustion efficiency
A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
High quality materials and purpose-built components ensure reliable long-term use
Meets world's most stringent environmental legislation
Guaranteed low fuel and oil consumption
Reduced vibration and noise level

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Fuel Type	Petrol
Power Rating	10 hp
Starting System	Both Recoil Start & Electric Start
Power	8.7 kW ( 11.7 HP ) / 3600 rpm
Application	Lawn Care, Agriculture, Construction Equip, Concrete Mixer, Portable Tool, Portable Pump, Small Generator, Power Sprayer
Cooling System	Air Cooled
Engine Brand	Honda
Number Of Cylinders	One
Model Name/Number	GX 390 T2 QBD
Design/ENGINE TYPE 4	stroke single cylinder, OHV petrol engine, 25 Degree inclined cylinder, Horizontal shaft
Piston Displacement	389 cm3;
Dry Weight	31.7 kg
Fuel Tank Capacity	6.1 L
Starter	Recoil (Electric optional)
Mounting Type	Frame Mounted
Ignition System	Digital CDI with variable ignition timing
Dimension	406 x 460 x 448 mm
Color	Red Cowl & Cream Fuel Tant
Cylinder Sleeve Type	Cast iron sleeve
Oil Capacity	1.1 Liter
Speed	3600 RPM
Engine Max Net Torque	26.5 Nm / 2.7 kgfm / 2500 rpm
Usage/Application	Agriculture / Construction / Industrial
Bore x Stroke	88 x 64 mm
Compression ratio (8.2	1)
Cont. Rated Power	6.4 kW ( 8.6 HP ) / 3000 rpm, 7.0 kW ( 9.4 HP ) / 3600 rpm
Country of Origin	Made in India

Applications & Uses

Heavy-Duty Plate Compactors
Concrete Power Trowels
Concrete Mixers
Concrete Cutters
Road Construction Equipment
Vibratory Rollers
Water Pumps
Generators
Agricultural Machinery
Industrial Equipment
Construction Machinery
Other high-power engine-driven equipment
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
