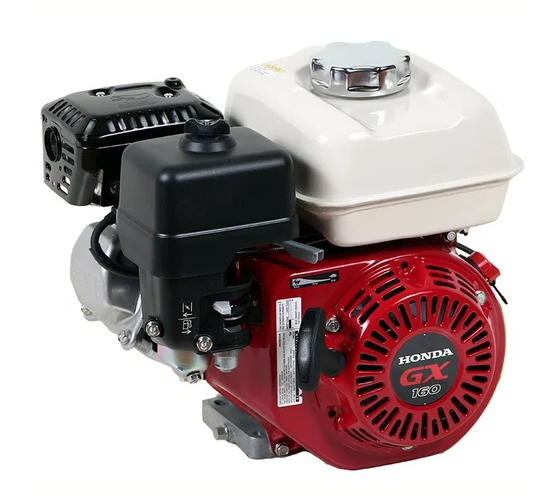

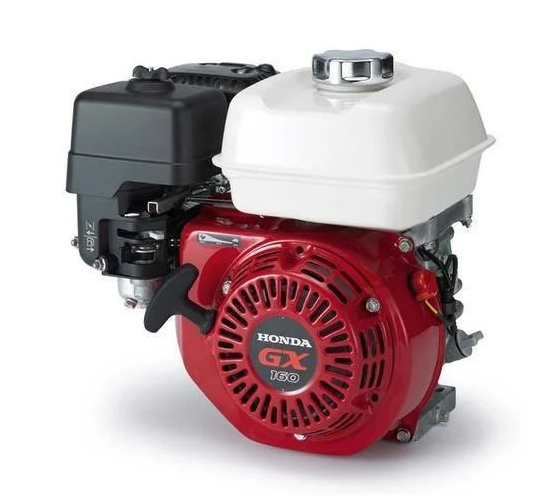

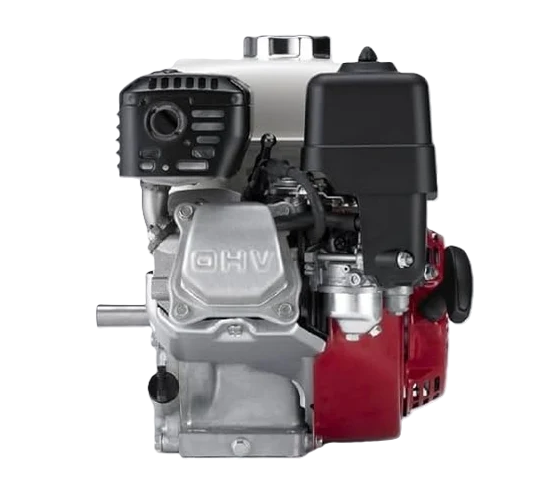

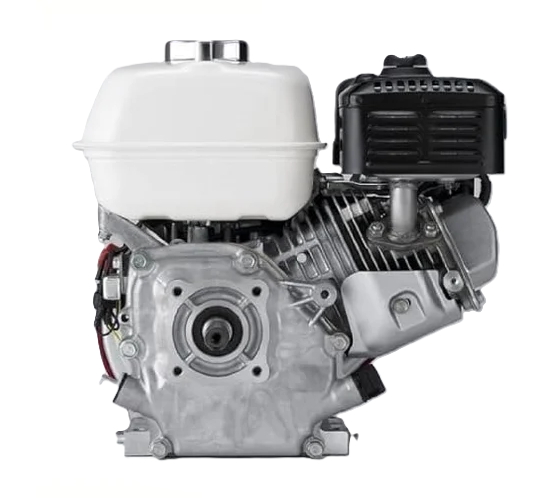

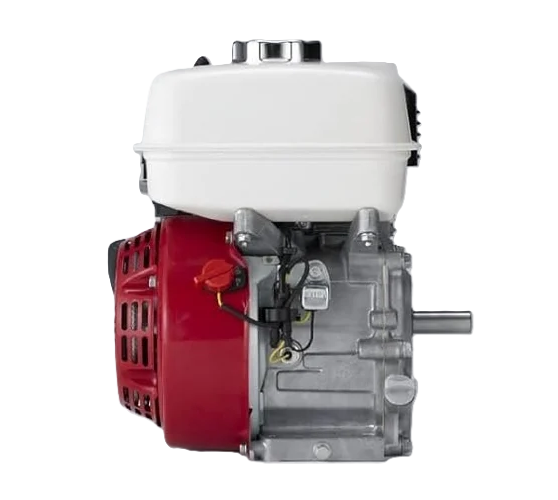

Honda GX160D QTB General Purpose Engine

Model GX160D

Overview

The Honda GX160D QTB is a compact, reliable and durable petrol general-purpose engine designed for construction, agricultural, industrial and commercial equipment.

Detailed Description

The Honda GX160 is a high-performance 4-stroke OHV petrol engine designed to deliver exceptional power and reliability across various demanding applications. With a robust 3.6 kW (4.8 hp) net power at 3600 RPM, this engine is engineered for both durability and efficiency, making it ideal for use in environments that require consistent performance and high load capabilities.

Key Features

4-stroke, air-cooled OHV petrol engine
160 cc displacement
Horizontal PTO shaft
Maximum net power: 4.8 HP (3.6 kW) @ 3,600 RPM
Maximum net torque: 10.3 Nm @ 2,500 RPM
Cast-iron cylinder sleeve
Transistorized ignition system
Recoil starting system
Compact and durable construction
Suitable for continuous commercial applications

Advantages

Reliable Performance: Designed for dependable operation in commercial and general-purpose applications.
Compact Design: Its relatively compact dimensions and approximately 15.1 kg dry weight make it practical for portable machinery.
Good Torque: The 10.3 Nm maximum torque at 2,500 RPM provides useful low-speed pulling power for equipment applications.
Durable Construction: The GX160 incorporates a cast-iron cylinder sleeve and robust construction intended for commercial use.

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

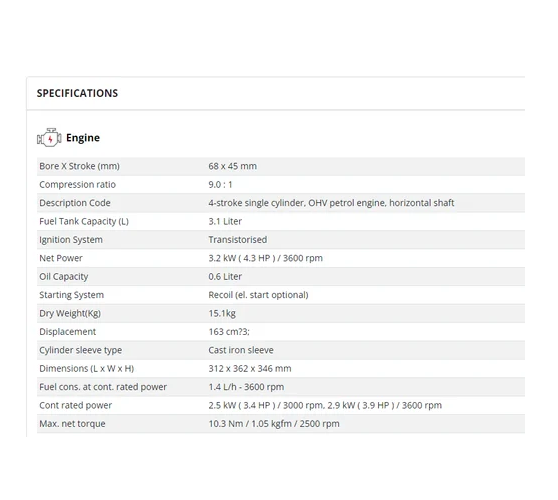

Technical Specifications

Fuel Type	Petrol
Engine Displacement	160 cc
Power Rating	4.8 HP
Starting System	Recoil Start
Cooling System	Air Cooled
Application	Power Sprayer, Compressor, Concrete Mixer, Construction Equip, Pump Set, Generator, Agriculture
Brand	Honda
Number Of Cylinders	Single Cylinder
Engine Speed	3000 rpm
Fuel Tank Capacity	3 L
Engine Arrangement	Horizontal
Mounting Type	Base Mounted
Engine Type	4 Stroke

Applications & Uses

Plate Compactors
Concrete Mixers
Concrete Power Trowels
Concrete Cutters
Water Pumps
Generators
Tamping & Compaction Equipment
Agricultural Machinery
Construction Equipment
Industrial Machinery
Landscaping Equipment
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
