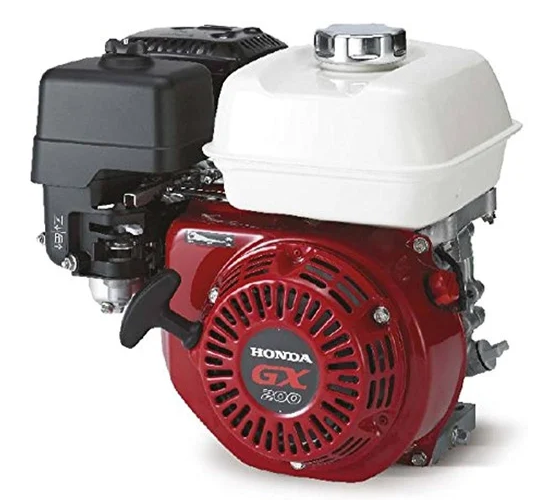

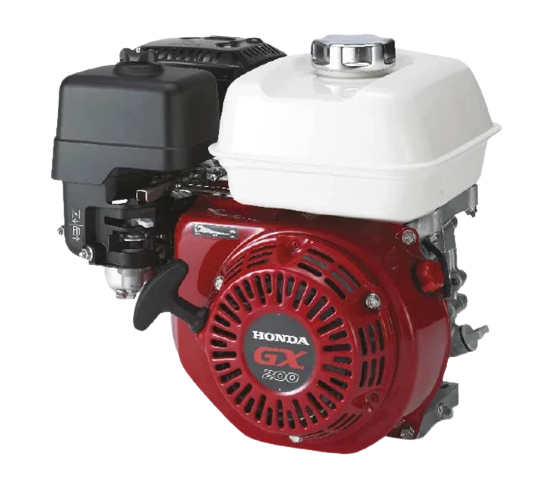

Honda GX200 General Purpose Engine

Model GX200

Call for Price WhatsApp
Overview

Honda GX200 is a reliable 196cc, air-cooled 4-stroke petrol engine delivering up to 5.5 HP at 3,600 RPM, suitable for plate compactors, concrete mixers, pumps, generators and a wide range of construction and industrial equipment.

Detailed Description

The Honda GX200 is a compact, air-cooled, 4-stroke petrol engine designed to provide dependable power for a wide range of construction, agricultural, industrial and commercial equipment. Honda specifies the GX200 with a 196cc displacement, horizontal PTO shaft, and a maximum net output of 5.5 HP (4.3 kW) at 3,600 rpm in its current specification listing. Its combination of robust construction, efficient operation and easy starting makes it suitable for equipment that requires a reliable petrol power source. Honda also identifies the GX200 as a general-purpose engine with broad mounting compatibility and durability.

Key Features

  • 4-Stroke OHV Petrol Engine
  • 196 cc Engine Displacement
  • 5.5 HP Maximum Net Power @ 3,600 RPM
  • 12.4 Nm Maximum Net Torque @ 2,500 RPM
  • Air-Cooled Design
  • Horizontal PTO Shaft
  • Recoil Starting System
  • Transistorized Magneto Ignition
  • Mechanical Governor
  • Splash Lubrication
  • Dual-Element Air Cleaner
  • 3.1 L Fuel Tank Capacity
  • 0.6 L Engine Oil Capacity
  • Compact and robust construction

Advantages

  • Reliable Power: Designed for dependable performance in a broad range of general-purpose applications.
  • Good Torque Output: The 12.4 Nm peak torque helps provide useful power for equipment operating under varying loads.
  • Easy Operation: The recoil-start configuration provides a straightforward starting system.
  • Durable Design: The GX series is designed around durability and long-term general-purpose use.

Additional Details:

  • 2 Years Warranty by Default Manufacturer.
  • OHV design enhances combustion efficiency.
  • High power-to-displacement ratio.
  • Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle.
  • High quality materials and purpose-built components which ensure reliable, long-term use.
  • Meets world's most stringent environmental legislation.
  • Low fuel and oil consumption.
  • Reduced vibration and noise levels.
Warranty Default By Manufacturer
Delivery Pan India
Support During Office Hours
Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Power Rating 5.5 HP
Engine Displacement 196 cc
Starting System Recoil (electric start optional)
Power 5.5 HP @ 3600 RPM
Application Lawn Mower, Construction Equip, Power Sprayer, Agriculture, Pump Set, Concrete Mixer, Portable Tool
Cooling System Air Cooled
Engine Brand Honda
Number Of Cylinders One
Model Name/Number GX 200 D QTB
Brand HONDA
Design Single cylinder, Air cooled, 4 stroke OHV Petrol Engine
Piston Displacement 196 cm3
Displacement 196 cm3
Dry Weight 16.1 kg
Fuel Tank Capacity 3 L
Engine Speed/RPM 3600 rpm
Engine Type 4 Stroke
Ignition System Transistorized
Lubrication System Splash
Dimension 321 x 376 x 346 mm
Color Red with Cream Fuel Tank
Cylinder Sleeve Type Cast iron sleeve
Weight 16.1 kg
Oil Capacity 0.6 Liter
Engine Max Net Torque 12.4 Nm / 1.26 kgfm / 2500 rpm
Height 346 mm
Usage/Application Agriculture, Construction, Industrial
Bore x Stroke 68 x 54 mm
Compression ratio - 8.5:1
Country of Origin Made in India

Applications & Uses

  • Plate Compactors
  • Concrete Power Trowels
  • Concrete Mixers
  • Concrete Cutters
  • Tamping Rammers
  • Water Pumps
  • Generators
  • Construction Machinery
  • Agricultural Equipment
  • Industrial Machinery
  • Lawn & Garden Equipment
  • Other engine-driven equipment
  • ***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
