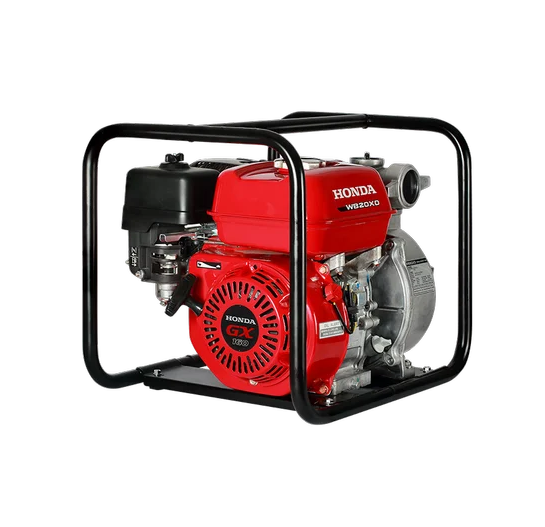

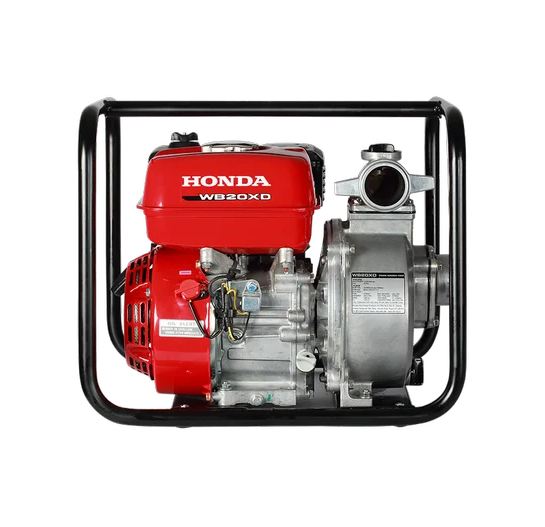

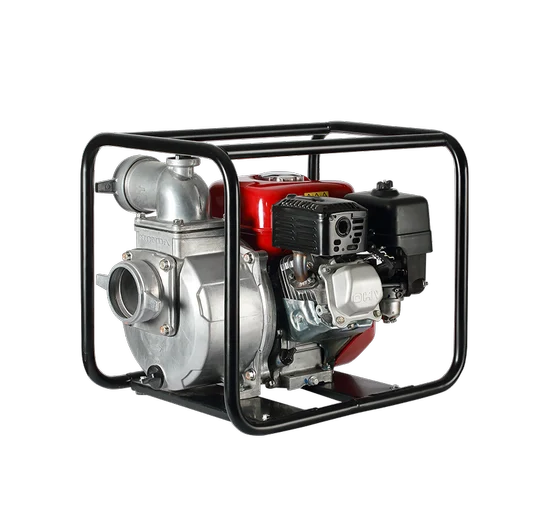

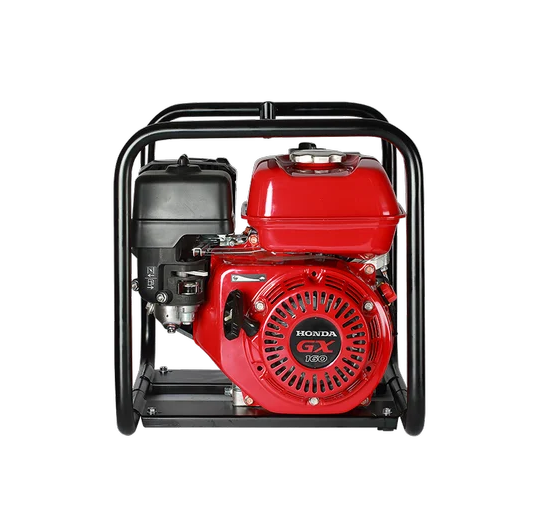

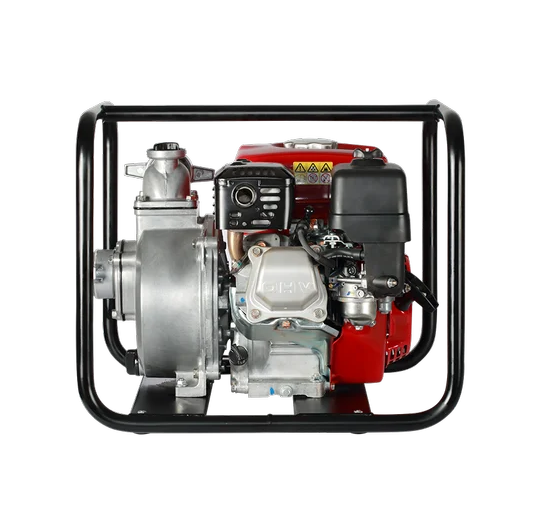

HONDA WB20XD Water Pump set

Model WB20XD

Overview

Honda WB20XD is a high-head 2-inch petrol-operated water pump set designed for efficient irrigation, water transfer and dewatering applications.

Detailed Description

Honda WB20XD Water pump set is a high-head 2-inch petrol-operated water pump set designed for efficient irrigation, water transfer and dewatering applications. Powered by a Honda GX160D 163 cc 4-stroke OHV petrol engine, the WB20XD delivers a maximum water discharge of up to 670 liters per minute and a minimum total head of 32 meters.

The pump features 50 mm (2-inch) suction and discharge ports and a centrifugal self-priming design with monoblock horizontal construction and mechanical seal. Its high-head performance makes it particularly suitable for applications where water needs to be transported over longer distances or to higher elevations.

The WB20XD combines Honda's 4-stroke engine technology with a compact and portable design, making it suitable for agricultural farms, irrigation projects, construction sites, drainage operations and general water-transfer requirements.

Key Highlights:

Honda GX160D 163 cc petrol engine
2-inch × 2-inch water pump
Maximum discharge: 670 L/min
Total head: 32 meters minimum
Suction head: 7.5 meters
50 mm suction and discharge ports
3.6 kW net engine power @ 3,600 RPM
Centrifugal self-priming pump
Mechanical seal
3.1 L fuel tank
Dual-type air cleaner
Recoil starting system
Lightweight 26 kg construction
Suitable for irrigation, dewatering and water-transfer applications

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Specification	Honda WB20XD
Model	WB20XD
Pump Size	2 × 2 inch
Pump Type	Centrifugal Self-Priming
Pump Construction	Monoblock Horizontal with Mechanical Seal
Engine Type	4-Stroke, Single Cylinder, Air-Cooled, OHV
Engine Displacement	163 cc
Engine Model	Honda GX160D
Rated Power	2.9 kW @ 3,600 RPM
Net Power	3.6 kW @ 3,600 RPM
Fuel Type	Petrol
Fuel Tank Capacity	3.1 L
Suction Port Diameter	50 mm / 2 inch
Discharge Port Diameter	50 mm / 2 inch
Maximum Discharge	670 L/min
Total Head Range	32 m
Suction Head	7.5 m
Air Cleaner	Dual Type
Starting System	Recoil Starter
Dry Weight	26 kg
Dimensions (L × W × H)	490 × 385 × 410 mm
*Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability *

Applications & Uses

Agricultural irrigation
Farm and field water pumping
Irrigation in hilly/high-elevation areas
Water transfer from ponds, canals and tanks
Construction-site dewatering
Drainage applications
Borewell-related water transfer
Garden and landscaping irrigation
General-purpose water pumping
