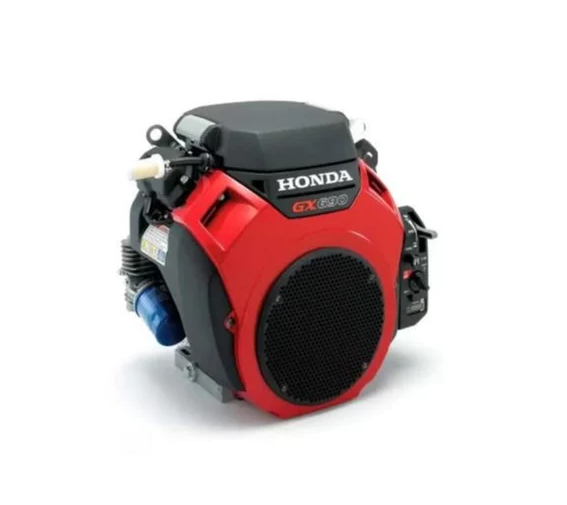

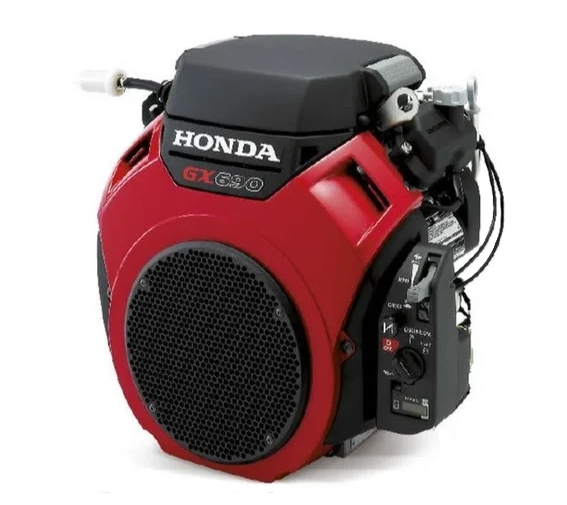

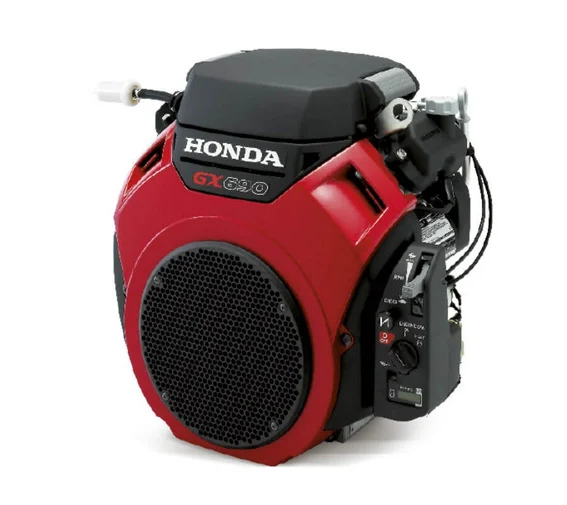

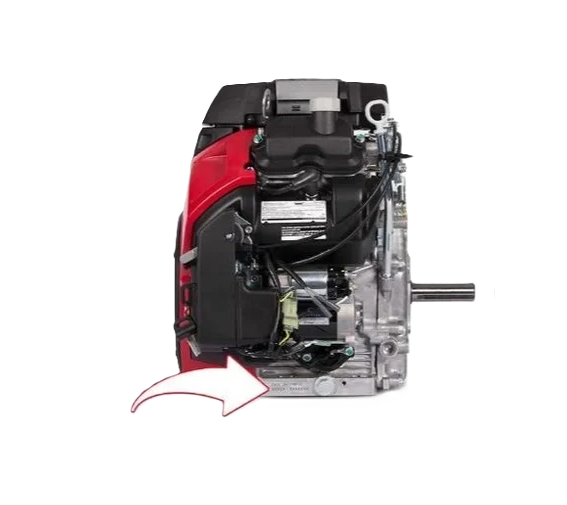

HONDA GX690 General Purpose Engine

Model GX690

Call for Price WhatsApp
Overview

Honda GX690 is a powerful 688cc, 22.1 HP petrol general-purpose engine featuring a 90° V-Twin design, horizontal shaft and electric starting.

Detailed Description

The Honda GX690 is a high-performance, heavy-duty petrol engine designed for demanding construction, agricultural, industrial and commercial applications. It features a 688 cc, air-cooled, 4-stroke OHV 90° V-Twin configuration and delivers 22.1 HP (16.5 kW) at 3,600 RPM with maximum net torque of 48.3 Nm at 2,500 RPM.

Key Features

  • Engine Type: Air-cooled, 4-stroke OHV, 2-cylinder 90° V-Twin
  • Displacement: 688 cc
  • Maximum Net Power: 22.1 HP / 16.5 kW @ 3,600 RPM
  • Maximum Net Torque: 48.3 Nm @ 2,500 RPM
  • Bore × Stroke: 78 × 72 mm
  • Compression Ratio: 9.3:1
  • Starting System: Electric starter
  • Ignition: Digital CDI with variable ignition timing
  • Carburettor: 2-barrel
  • Cooling: Air cooled
  • Lubrication: Forced-pressure lubrication
  • Air Cleaner: Dual element
  • Cylinder Sleeve: Cast iron
  • PTO: Horizontal shaft
  • Dry Weight: Approx. 44.6 kg
  • Dimensions: Approx. 429 × 410 × 438 mm

Advantages

  • High Power Output: With 22.1 HP at 3,600 RPM, the GX690 is designed for equipment requiring substantial engine power.
  • V-Twin Smoothness: The 90° V-Twin configuration provides smoother operation and helps reduce vibration compared with a single-cylinder engine.
  • High Torque: Its 48.3 Nm maximum torque at 2,500 RPM is suited to applications involving substantial mechanical loads.
  • Durable Construction: The engine incorporates a cast-iron cylinder sleeve and forced-pressure lubrication system for demanding applications.
  • Electric Starting: Electric starting provides convenient operation, particularly for larger machinery.

Additional Details

  • The OHV design enhances combustion efficiency
  • Variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emission performance
  • The high-efficiency cooling fan generates higher airflow with reduced noise levels
  • High-quality materials and purpose-built components ensure reliable, long-term use
  • Meets world's most stringent environmental legislation
  • Low fuel and oil consumption
Warranty Default By Manufacturer
Delivery Pan India
Support During Office Hours
Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

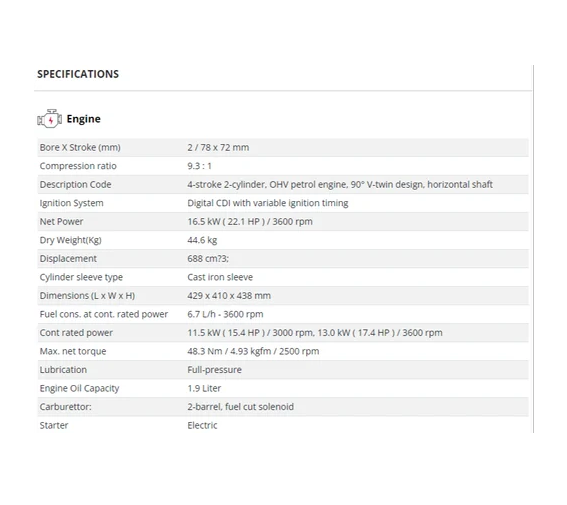

Technical Specifications

Fuel Type Petrol
Power Rating 20 hp
Starting System Electric
Net Power Output 16.5 kW ( 22.1 HP ) / 3600 rpm
Cooling Air Cooled
Application Portable Pump, Portable Tool, Construction Equip, Lawn Care
Cooling System Air Cooled
Engine Brand Honda
Number Of Cylinders TWO
Model Name/Number GX690RH TXF7 / GX690RHX TXF7
Brand HONDA
Design/Engine type/features 4-stroke 2-cylinder, OHV petrol engine, 90 Degree V-twin design, horizontal shaft
Piston Displacement 688 cm3
Displacement 688 cm3
Dry Weight 44.6 kg
Starter Electric
Mounting Type Frame Mounted
Ignition System Digital CDI with variable ignition timing
Lubrication System Full-pressure
Net Torque 48.3 Nm / 4.93 kgfm / 2500 rpm
SPeed/RPM 3600
Dimension 429 x 410 x 438 mm
Color Red
Cylinder Sleeve Type Cast iron sleeve
Weight 44.6 kg
Oil Capacity 1.9 Liter
Height 438 mm
Usage/Application Construction, Industrial, Agriculture
Bore x Stroke 2 / 78 x 72 mm
Carburettor 2-barrel, fuel cut solenoid
Compression ratio 9.3 : 1
Cont. Rated Power 11.5 kW ( 15.4 HP ) / 3000 rpm, 13.0 kW ( 17.4 HP ) / 3600 rpm
Dimensions 429 x 410 x 438 mm

Applications & Uses

  • Vibratory Road Rollers
  • Heavy-Duty Plate Compactors
  • Concrete Power Trowels
  • Concrete Mixers
  • Concrete Cutters
  • Large Water Pumps
  • Generators
  • Pressure Washers
  • Road Construction Equipment
  • Agricultural Machinery
  • Industrial Equipment
  • Commercial Machinery
  • ***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
