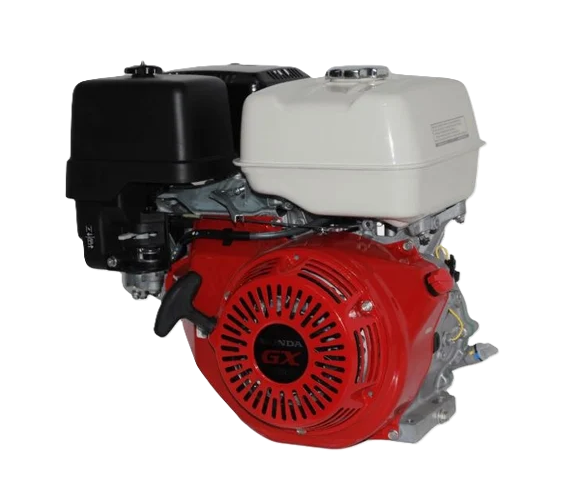

Honda GX430T QXE Electric Start General Purpose Engine

Model GX430T

Overview

The Honda GX430 is a compact, air-cooled 4-stroke OHV engine with a 425 cm³ displacement, delivering up to 9.6 kW at 3,600 RPM.

Detailed Description

The Honda GX430 is a compact, air-cooled 4-stroke OHV engine with a 425 cm³ displacement, delivering up to 9.6 kW at 3,600 RPM. It combines advanced fuel-efficient combustion, a compression-release mechanism for effortless starting, and shaft-balancing technology to minimize vibration and noise. A precision governor ensures stable RPM under load, making the GX430 ideal for a wide range of industrial and commercial applications.

Key Features

Engine Type: 4-stroke, single-cylinder, OHV petrol engine
Displacement: 425 cc
Maximum Power: 9.6 kW / approximately 13 HP @ 3,600 RPM
Maximum Torque: Approximately 27.7 Nm @ 2,500 RPM
Bore × Stroke: 88 × 70 mm
Compression Ratio: 9.0:1
Cooling: Air-cooled
Starting System: Electric Start
Ignition: CDI-type magneto
Fuel System: Carburetor
Fuel Tank Capacity: 6.1 L
Engine Oil Capacity: 1.1 L
Air Cleaner: Dual-element type
Dry Weight: Approximately 32–32.4 kg
Horizontal PTO shaft configuration available depending on specification

Advantages

High Power Output: The 425 cc engine provides substantial power for demanding equipment applications.
Electric Starting: The QXE configuration provides convenient push-button starting compared with recoil-only configurations.
Stable Operation: Honda's governor and engine design are intended to maintain consistent engine speed under varying operating conditions.
Reduced Vibration: The GX430 incorporates balancing technology designed to reduce vibration and noise during operation.
Heavy-Duty Design: The engine is designed for professional-grade applications requiring dependable power and durability.

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Fuel Type	Petrol
Power Rating	13 hp
Starting System	Both Recoil Start & Electric Start
Application	Concrete Mixer, Small Generator, Portable Tool, Power Sprayer, Portable Pump, Construction Equip, Agriculture
Cooling System	Air Cooled
Brand	Honda
Fuel Tank Capacity	7 L
Engine Type	4 Stroke
Mounting Type	Frame Mounted

Applications & Uses

Plate Compactors
Concrete Mixers
Concrete Cutters
Concrete Power Trowels
Vibratory Rollers
Water Pumps
Generators
Pressure Washers
Agricultural Machinery
Construction Equipment
Industrial Machinery
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
