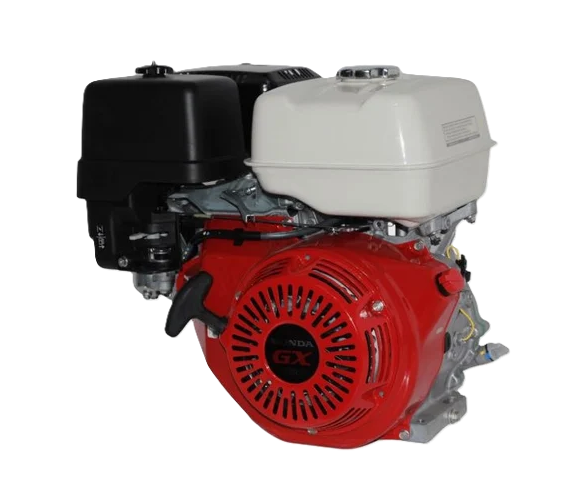

HONDA GX430T QX Engine

Model GX430T

Overview

Honda GX430T QX is a powerful 425cc petrol general-purpose engine delivering 9.6 kW (approximately 13 HP) at 3,600 RPM.

Detailed Description

The Honda GX430T QX is a powerful 425 cc, 4-stroke OHV petrol engine designed for demanding construction, agricultural, industrial and commercial applications. It delivers 9.6 kW (approximately 13 HP) at 3,600 RPM and is equipped with a horizontal PTO shaft with keyed configuration (QX). Honda lists the GX430 for professional applications including construction equipment, pumps, generators and pressure washers.

Key Features

Engine Type: 4-Stroke, OHV, single-cylinder petrol engine
Displacement: 425 cc
Maximum Net Power: 9.6 kW / approx. 13 HP @ 3,600 RPM
Maximum Net Torque: 27.7 Nm @ 2,500 RPM
Bore × Stroke: 88 × 70 mm
Compression Ratio: 9.0:1
Cooling: Air-cooled
Starting System: Recoil/Electric starter
Ignition: CDI-type magneto
Fuel System: Carburetor
Fuel Tank Capacity: 6.1 L
Engine Oil Capacity: 1.1 L
Air Cleaner: Dual-element type
PTO: Horizontal shaft, keyed configuration
Dry Weight: Approx. 32.4 kg
Dimensions: Approx. 413 × 469 × 453 mm

Advantages

High Power Output: The 425 cc engine provides strong power for demanding professional applications.
High Torque: Approximately 27.7 Nm at 2,500 RPM provides useful torque for equipment operating under load.
Smooth Operation: Honda's GX430 incorporates a balancer shaft designed to reduce vibration and noise.
Reliable Speed Control: Its governor mechanism is designed to help maintain stable engine speed during operation.
Durable Professional Design: The GX430 is positioned by Honda for professional-grade construction, pumping, generating and pressure-washing applications.

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

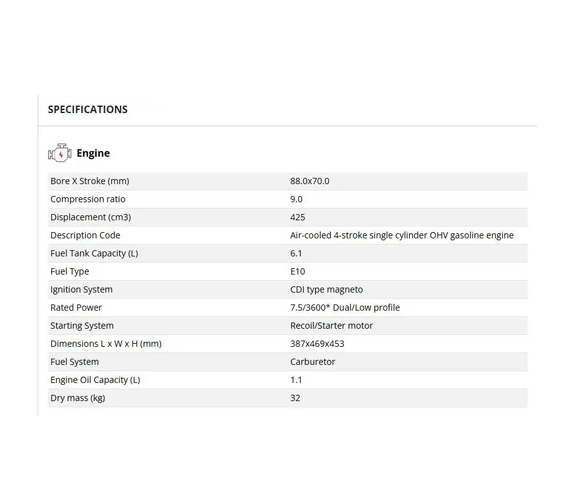

Technical Specifications

Specification	Honda GX430T QX
Model	GX430T QX
Engine Type	4-Stroke OHV, Single Cylinder
Fuel	Petrol / Unleaded Gasoline
Displacement	425 cc
Bore × Stroke	88 × 70 mm
Maximum Power	9.6 kW / approx. 13 HP @ 3,600 RPM
Maximum Torque	27.7 Nm @ 2,500 RPM
Compression Ratio	9.0:1
Cooling System	Air Cooled
Starting System	Recoil
Ignition System	CDI-Type Magneto
Fuel System	Carburetor
Fuel Tank	6.1 L
Oil Capacity	1.1 L
Air Filter	Dual Element
Dry Weight	Approx. 32.4 kg
Dimensions (L × W × H)	413 × 469 × 453 mm
Shaft Configuration	Horizontal, Keyed PTO

Applications & Uses

Plate Compactors
Concrete Mixers
Concrete Cutters
Concrete Power Trowels
Vibratory Rollers
Water Pumps
Generators
Pressure Washers
Road Construction Equipment
Agricultural Machinery
Industrial Machinery
Other Heavy-Duty Engine-Driven Equipment
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
