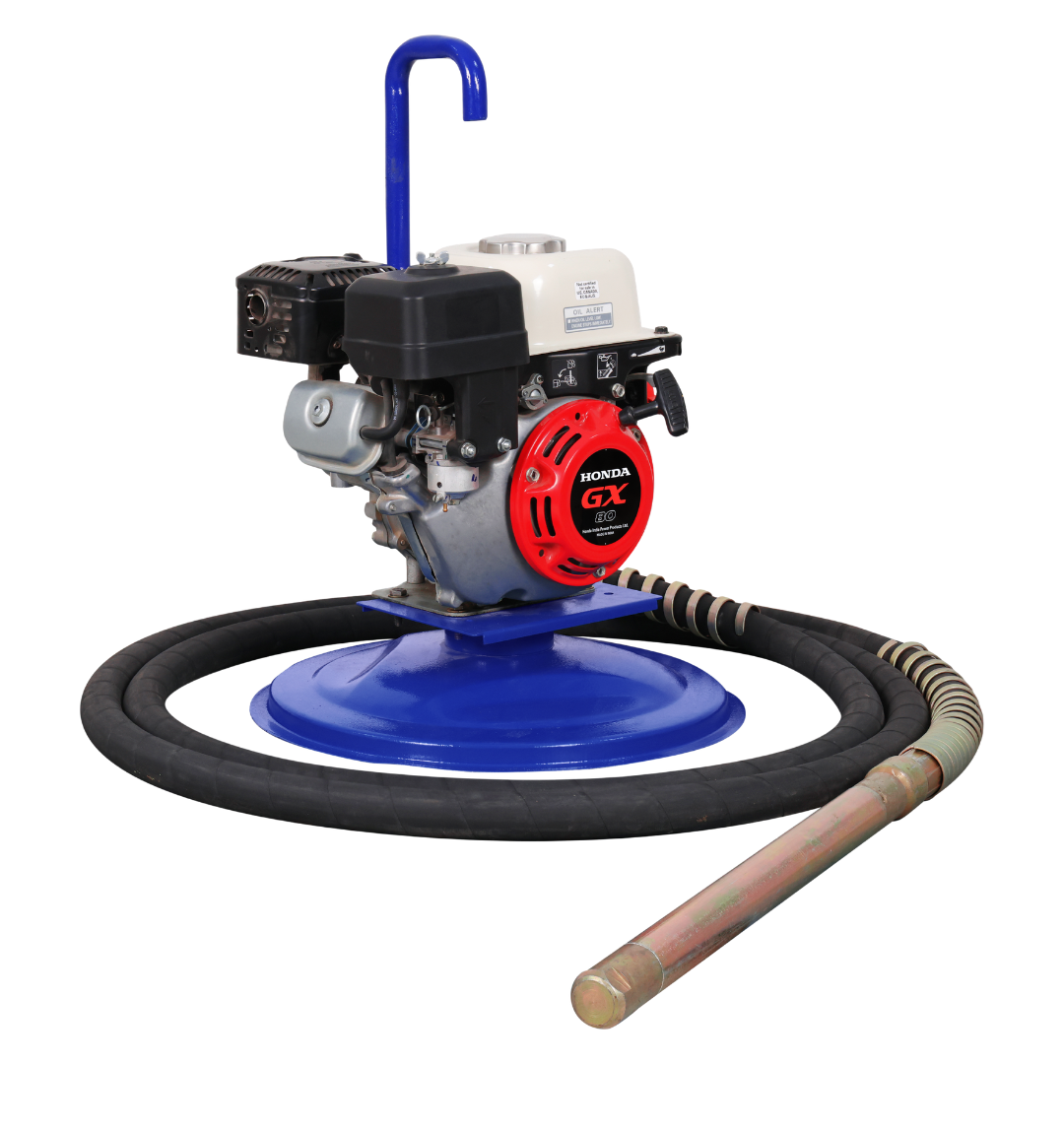

Concrete Vibrator CV40-80 (GX80)

Model CV40-80 (GX80)

Overview

Honda CV40-80 Concrete Vibrator is a compact and efficient petrol-powered needle vibrator designed for effective consolidation of freshly poured concrete.

Detailed Description

Honda CV40-80 Concrete Vibrator is a compact and efficient petrol-powered needle vibrator designed for effective consolidation of freshly poured concrete. Powered by the reliable Honda GX80 79.7 cc 4-stroke OHV petrol engine, it delivers 1.5 kW (2 HP) of net power at 3,600 rpm.

The CV40-80 is equipped with a 40 mm vibrator needle and a 6-metre flexible shaft, allowing efficient compaction around reinforcement, beams, columns, foundations and slabs. The vibration helps remove trapped air bubbles and voids from freshly placed concrete, improving density, bonding and overall concrete quality.

Its petrol-powered design allows operation at construction sites where electricity may not be readily available. The compact engine, recoil starting system and revolving PVC base make the machine convenient to handle and suitable for professional construction applications.

Key Highlights:

Honda GX80 79.7 cc 4-stroke OHV petrol engine
Net power: 1.5 kW / 2 HP @ 3,600 rpm
Rated power: 1.2 kW / 1.6 HP @ 3,600 rpm
40 mm vibrator needle
6 m flexible shaft
Recoil starting system
1.5 L fuel tank
Approx. 0.6 L/hour fuel consumption
360° revolving PVC base plate
Click/coupling housing
Compact and portable construction
Ideal for slabs, beams, columns, foundations and RCC construction

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Specification Honda CV40	80
Model	CV40-80
Engine Model	Honda GX80
Engine Type	4-Stroke, OHV, Single-Cylinder Petrol
Displacement	79.7 cc
Bore × Stroke	46 × 48 mm
Compression Ratio	: 9:1
Net Power	1.5 kW / 2 HP @ 3,600 rpm
Rated Power	1.2 kW / 1.6 HP @ 3,600 rpm
Maximum Net Torque	4.5 Nm @ 2,500 rpm
Starting System	Recoil Start
Ignition	Transistor Magneto
Fuel	Petrol
Fuel Tank Capacity	1.5 L
Fuel Consumption	Approx. 0.6 L/hour @ 3,600 rpm
Engine Oil Capacity	Approx. 0.30 L
Needle Diameter	40 mm
Flexible Shaft Length	6 m
Base Plate	360° Revolving PVC
Housing Type	Click/Coupling
Engine Dry Weight	Approx. 11.1 kg
Engine Dimensions	275 × 342 × 323 mm
*Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability *

Applications & Uses

RCC slab casting
Roof slab construction
Column casting
Beam and foundation work
Concrete flooring
RCC road construction
Residential construction
Commercial building projects
Small and medium construction sites
Concrete structures requiring thorough internal compaction
