Suspended Rope Platform

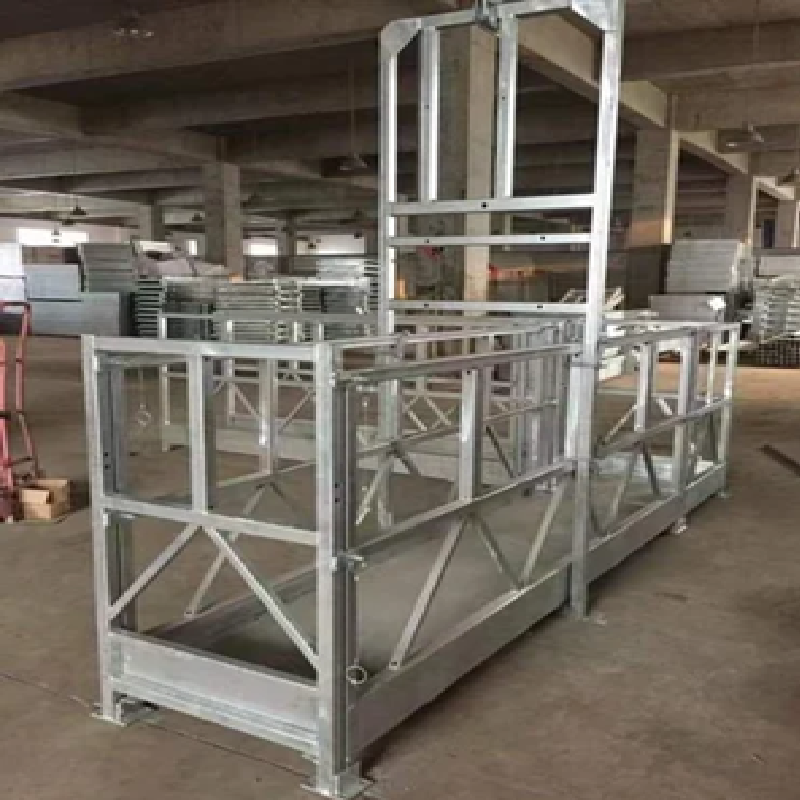

ZLP800 Rope Suspended Platform

Model ZLP800

Detailed Description

The ZLP800 Rope Suspended Platform is a heavy-duty electric suspended access platform (gondola) designed for high-rise construction, façade installation, painting, plastering, glass fixing, exterior maintenance, and window cleaning. With an 800 kg rated load capacity, dual electric hoists, advanced safety locks, and a modular platform design, the ZLP800 provides a safe, reliable, and cost-effective solution for working at height.">">

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Model Name/Number	ZLP800
Capacity	800 Kg
Platform Height	1200 mm
Platform Length	(1+1.5+2.5+2.5) m
Material	Galvanized Steel
Stair Access	With Ladder
Platform Width	2 Feet
Type Of Mast	Provided
Suspended Height	100 m, 150 m (optional)
Rated Speed	8-10m/min
Safety Lock Type	30 kn
Counterweight	1000kg (25 kgx40)

Applications & Uses

High-rise building construction
Exterior wall plastering
Building façade installation
Glass curtain wall installation
Exterior painting
Window cleaning
Building maintenance and repairs
Bridge inspection and maintenance
Chimney and silo maintenance
Industrial plant maintenance

Get Quote

Request Price for ZLP800 Rope Suspended Platform

Fill the form below and our team will send you the best quote within 24 hours.

Full Name *

Email *

Phone *

Company

Quantity

Location

City

Required Timeline

Additional Requirements

Call: +91-9218175959

More Products

Related Equipment

Suspended Rope Platform

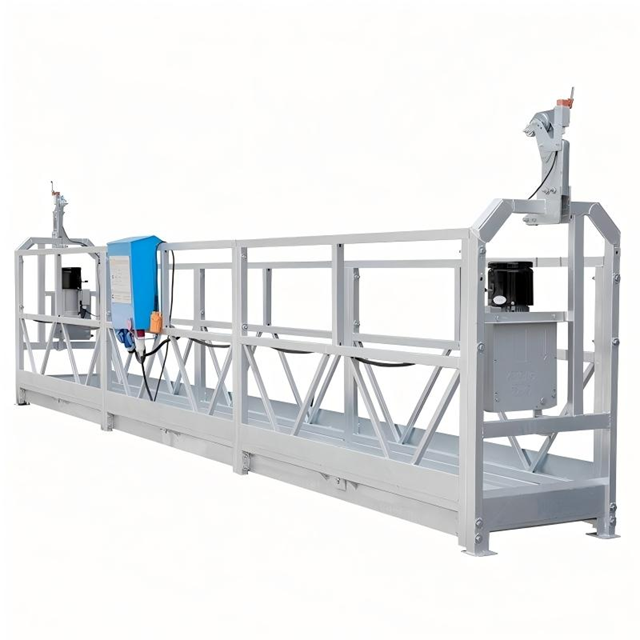

Rope Suspended Platform ZLP1000
