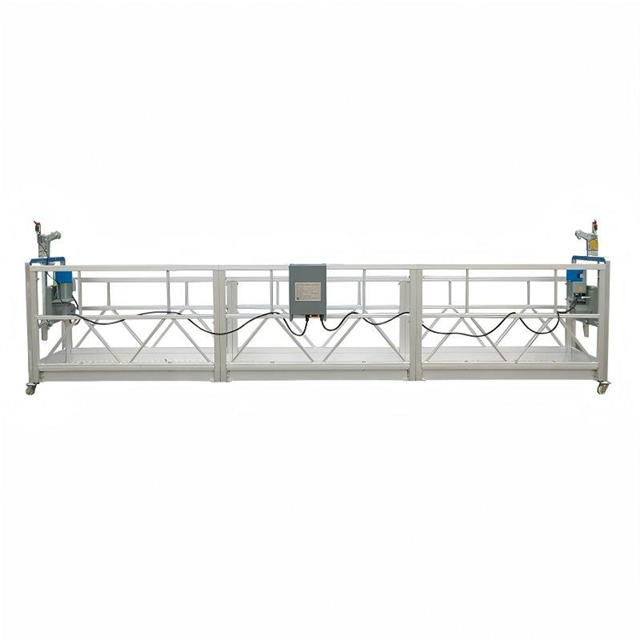

Rope Suspended Platform ZLP1000
Model ZLP1000
Detailed Description
The ZLP1000 Rope Suspended Platform is a heavy-duty electric suspended access platform (gondola) designed for high-rise construction, façade installation, exterior maintenance, painting, glazing, plastering, and building cleaning. With a 1000 kg rated load capacity, dual LTD100 hoists, and advanced safety systems, it provides a safe, stable, and efficient working platform for demanding aerial applications.
KEY FEATURES
1000 kg high load capacity for heavy-duty applications.
Dual LTD100 electric hoists for smooth and reliable lifting.
Independent anti-tilt safety locks.
Modular 7.5 m platform for easy transport and assembly.
Heavy-duty galvanized steel wire ropes.
Emergency stop and overload protection.
Waterproof electrical control panel.
Hot-dip galvanized or painted steel construction.
Optional lightweight aluminum alloy platform.
Stable and efficient operation for high-rise projects.
ADVANTAGES
High 1000 kg lifting capacity.
Faster and more economical than conventional scaffolding.
Safe and stable aerial working platform.
Easy installation, dismantling, and transportation.
Low operating and maintenance costs.
Suitable for construction, maintenance, and industrial applications.
Durable construction for long service life.
Modular design for flexible job site requirements.">">
KEY FEATURES
1000 kg high load capacity for heavy-duty applications.
Dual LTD100 electric hoists for smooth and reliable lifting.
Independent anti-tilt safety locks.
Modular 7.5 m platform for easy transport and assembly.
Heavy-duty galvanized steel wire ropes.
Emergency stop and overload protection.
Waterproof electrical control panel.
Hot-dip galvanized or painted steel construction.
Optional lightweight aluminum alloy platform.
Stable and efficient operation for high-rise projects.
ADVANTAGES
High 1000 kg lifting capacity.
Faster and more economical than conventional scaffolding.
Safe and stable aerial working platform.
Easy installation, dismantling, and transportation.
Low operating and maintenance costs.
Suitable for construction, maintenance, and industrial applications.
Durable construction for long service life.
Modular design for flexible job site requirements.">">
Delivery
Pan India
Support
24/7
Get Best Quote
Submit your requirement & get custom pricing.
Technical Specifications
| Model | ZLP1000 |
|---|---|
| Machine Type | Electric Rope Suspended Working Platform |
| Rated Load Capacity | 1000 kg |
| Platform Length | 7.5 m (3 × 2.5 m Sections) |
| Platform Width | 690 mm |
| Platform Height | 1180 mm |
| Lifting Speed | 8–10 m/min |
| Maximum Working Height | Up to 300 m (depending on wire rope length) |
| Hoist Model | LTD100 |
| Hoist Power | 2.2 kW × 2 |
| Power Supply | 380–415 V, 3 Phase, 50 Hz (220 V optional) |
| Wire Rope Diameter | 9.1–10.2 mm |
| Platform Material | Painted Steel / Hot-Dip Galvanized Steel / Aluminium Alloy (Optional) |
| Suspension Mechanism Weight | Approx. 250–340 kg |
| Platform Weight | Approx. 590–700 kg (depending on material) |
| Counterweight | 1200–1250 kg |

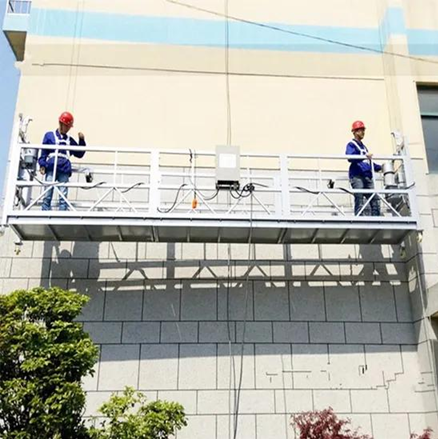

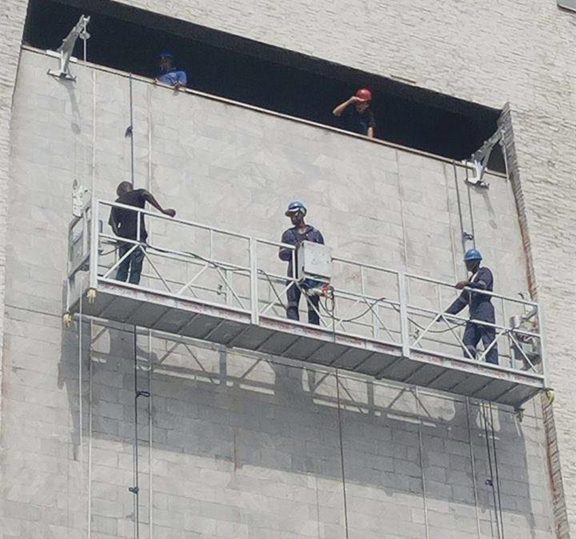

Applications & Uses
- High-rise building construction
- Exterior wall plastering
- Façade installation
- Glass curtain wall fixing
- Exterior painting
- Building maintenance
- Window cleaning
- Bridge inspection and maintenance
- Chimney and silo maintenance
- Dam and industrial plant maintenance
