Suspended Rope Platform
Request Quote
Suspended Working-W-Type Platform ZLP1000
Model ZLP1000
Detailed Description

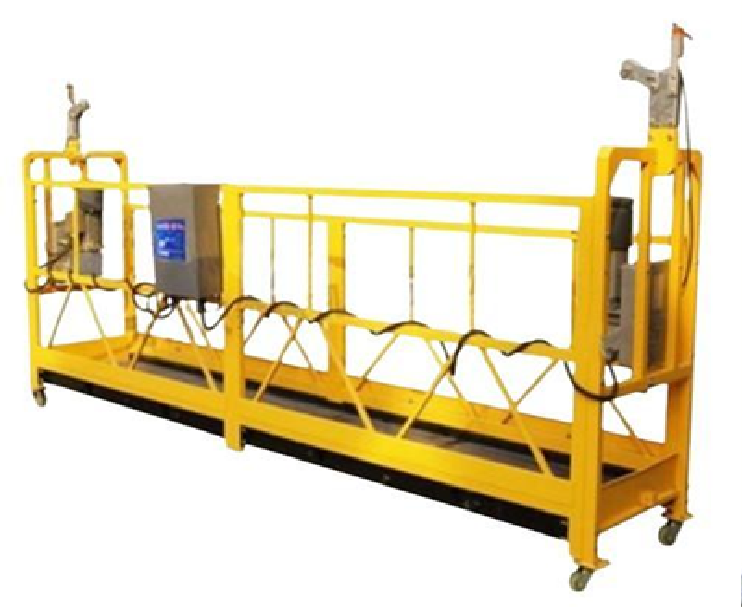

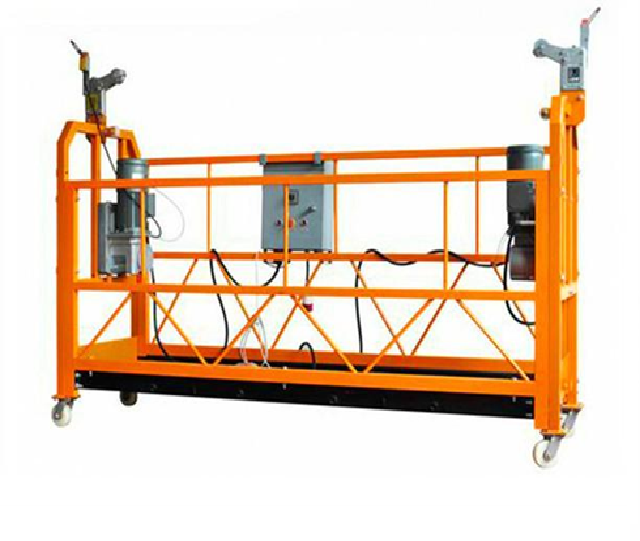

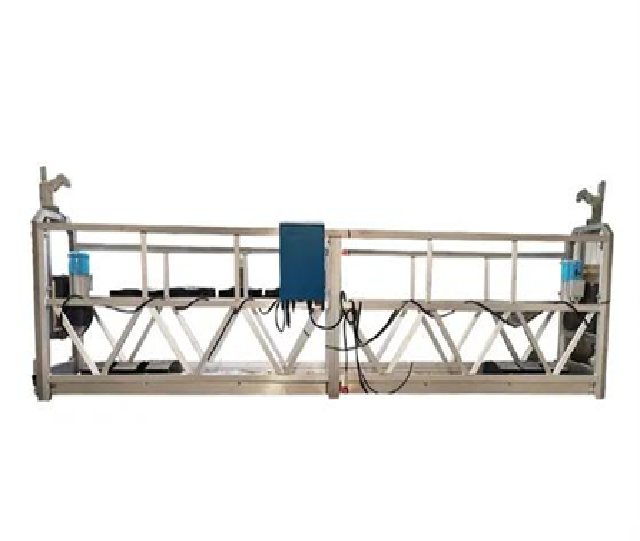

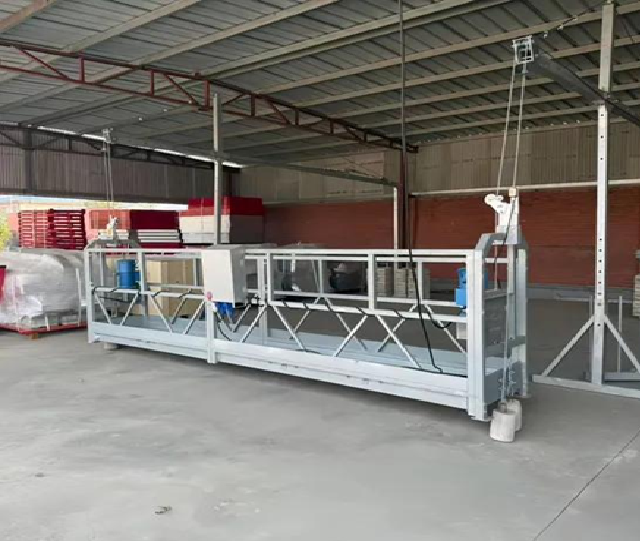

The ZLP1000 Suspended Working "W" Type Platform is a heavy-duty electric rope suspended access platform specially designed for high-rise construction, façade installation, exterior painting, plastering, glass fixing, window cleaning, bridge maintenance, and industrial inspection. With a 1000 kg safe working load, dual LTD100 electric hoists, advanced anti-tilt safety locks, and a modular W-type platform design, it provides superior stability, high productivity, and maximum operator safety for demanding aerial work.">
Delivery
Pan India
Support
24/7
Get Best Quote
Submit your requirement & get custom pricing.
Technical Specifications
| Platform Type | Mobile Platform |
|---|---|
| Platform Height | 1200 mm |
| Load Capacity | 1000 kg |
| Material Of Platform | Powder-Coated Steel / Hot-Dip Galvanized Steel / Aluminium Alloy (Optional) |
| Stair Access | With Ladder |
| Platform Size | 7.5m (2.5 m x 3 sections) |
| Platform Weight | Steel: Approx. 700 kg / Aluminium: Approx. 590 kg |
| Lifting Speed | 8–10 m/min |
| Hoist Motor Power | 2.2 kW × 2 |
| Suspension Mechanism Weight | Approx. 250–340 kg |
| Power Supply | 380–415 V, 3 Phase, 50 Hz (220V optional) |
| Rated Lifting Force | 10 kn |
| ***Specifications may vary depending on the manufacturer and configuration.*** | . |
Applications & Uses
- High-rise building construction
- Exterior wall plastering
- Building façade installation
- Glass curtain wall installation
- Exterior painting
- Window cleaning
- Building renovation and maintenance
- Bridge construction and inspection
- Chimney and silo maintenance
- Dam and industrial plant maintenance
