Galvanized Suspended Platform ZLP800
Model ZLP800
Detailed Description

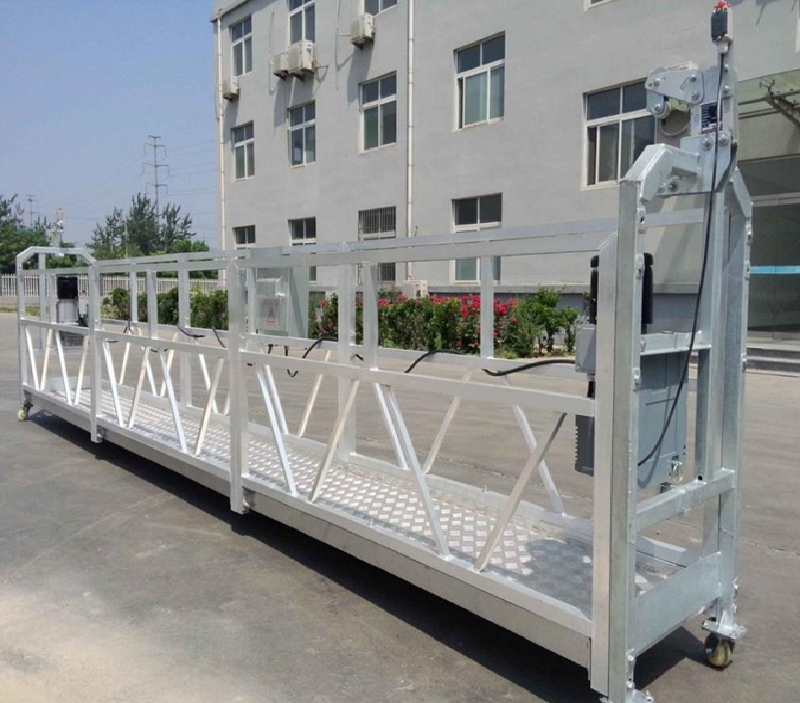

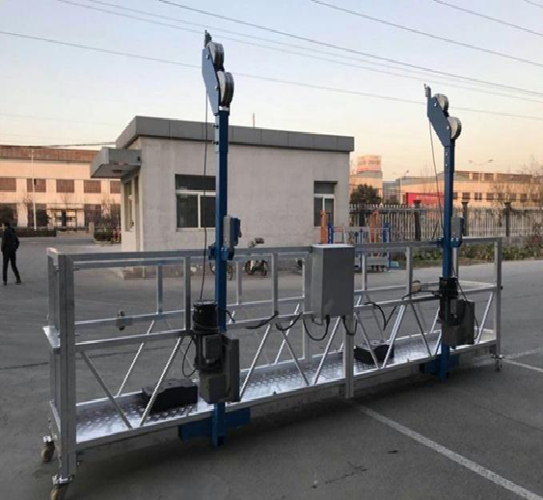

The Galvanized Suspended Platform ZLP800 is a premium electric rope suspended work platform manufactured with a hot-dip galvanized steel structure for superior corrosion resistance and long service life. Powered by dual 1.8 kW electromagnetic brake motors, it provides safe, stable, and efficient access for high-rise construction, façade installation, exterior painting, plastering, glazing, and maintenance work. The hot-dip galvanized finish makes it particularly suitable for coastal, humid, and industrial environments where enhanced corrosion protection is essential.">
Delivery
Pan India
Support
24/7
Get Best Quote
Submit your requirement & get custom pricing.
Technical Specifications
| Model | ZLP800 |
|---|---|
| Capacity | 800 KG |
| Material of Platform | Galvanized steel |
| Platform Length | 7.5 mtr |
| Platform Width | 1 mtr |
| Type Of Mast | Double Mast |
| Installation | Provided |
| Suspended Height | 100 mtr |
| Wire Rope/Length | 9.1 mm/100 mtr) |
| Power | 1.8 Kw |
| Voltage | 415v/380v |
| Rated Load | 8 Kn |
| Structure Weight | 900-950 kg Approx |
| Breaking | 15 Nm |
| Safety Lock | Tilt Proof Safety Lock x 2 |
| Safety Rope | Included |
| Cable Protection | Cable Snatch Protector Device |
Applications & Uses
- High-rise building construction
- Exterior wall plastering
- Façade installation
- Glass curtain wall installation
- Exterior painting
- Window cleaning
- Building maintenance and renovation
- Bridge inspection and repair
- Chimney maintenance
- Industrial plant maintenance
- Shipyard maintenance
- Power plant construction
