Concrete Laser Guided Screed

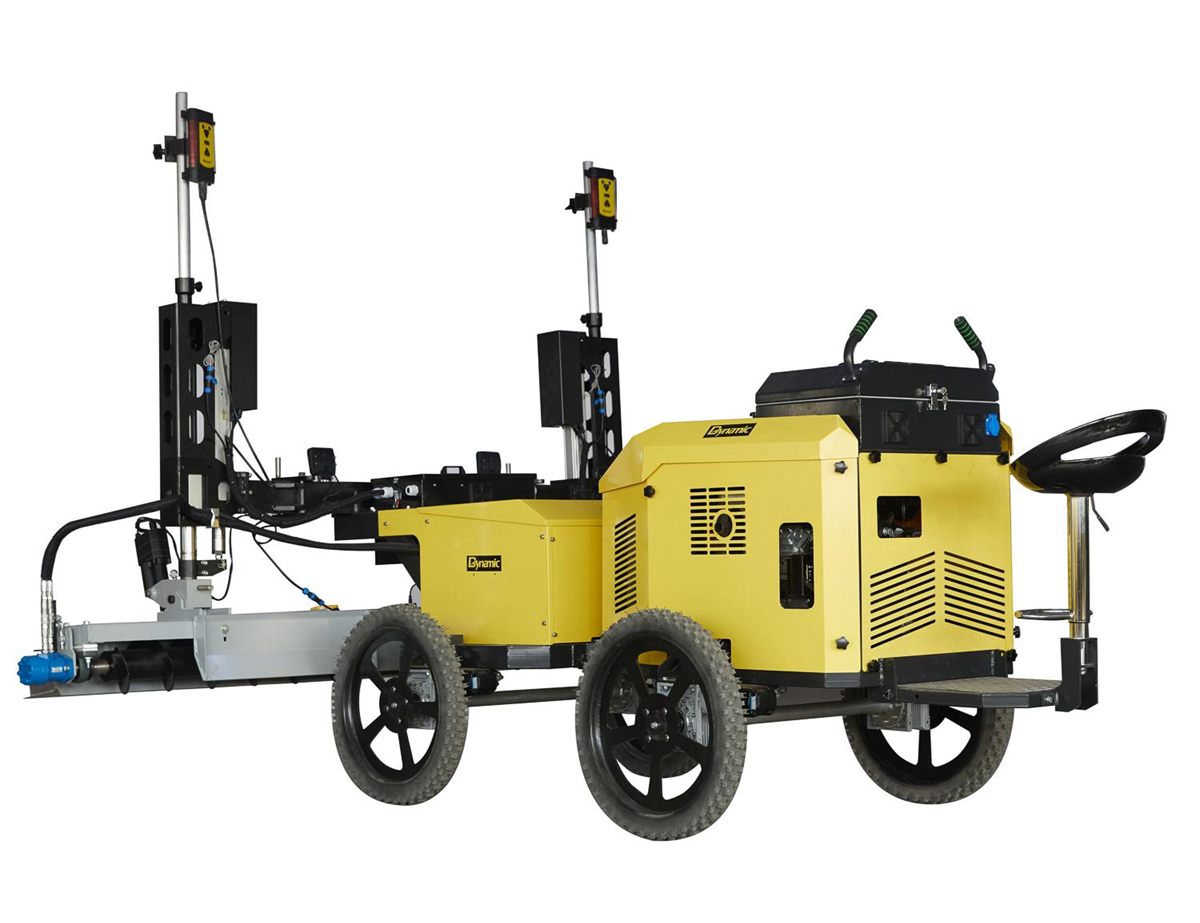

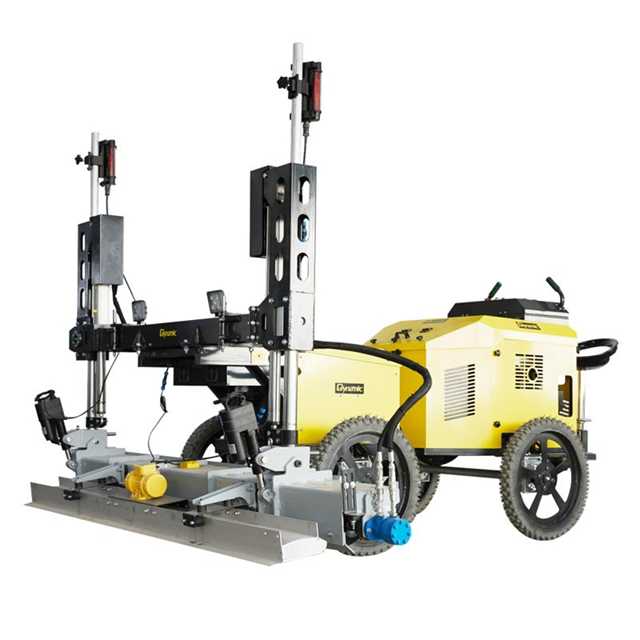

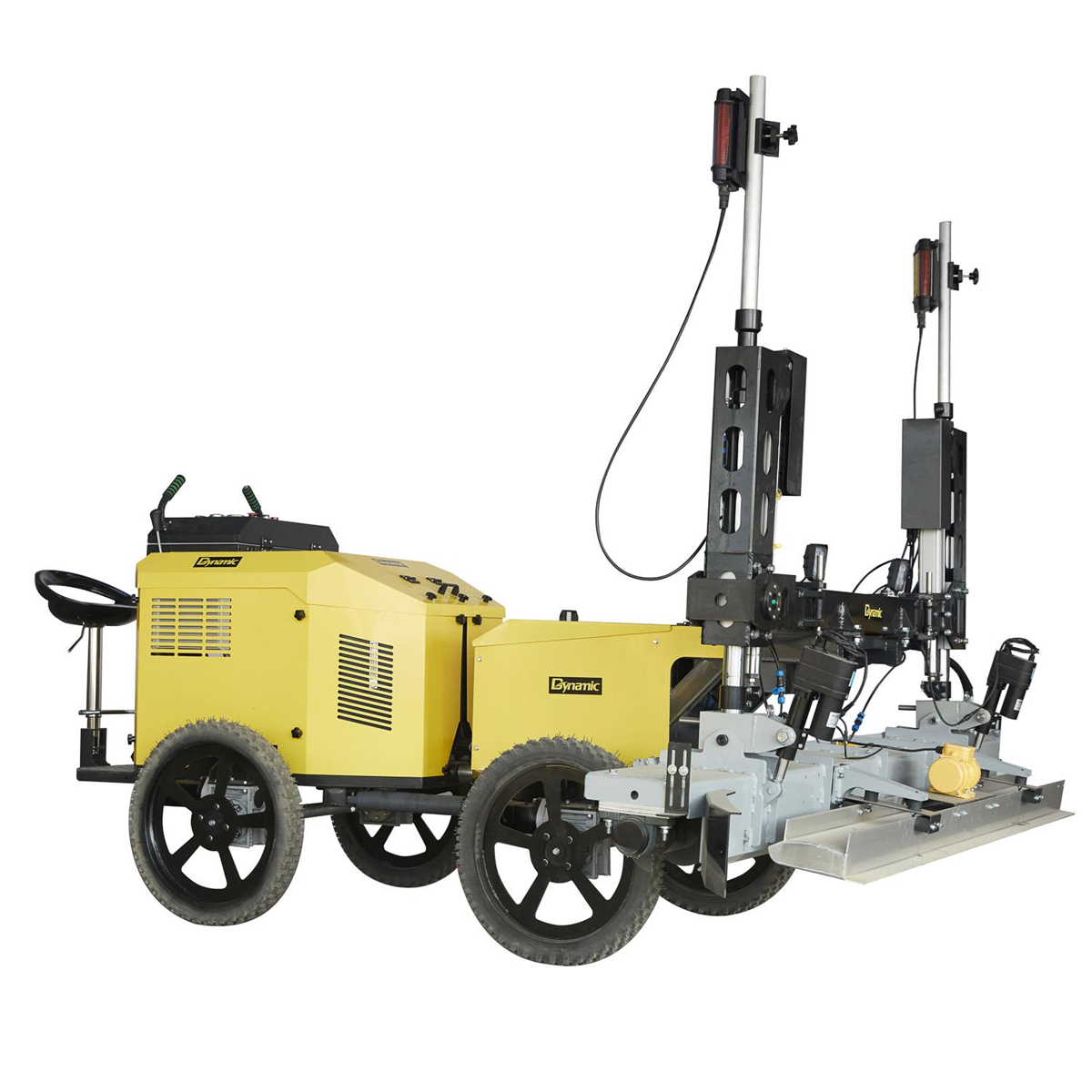

Stand-On Laser Guided Screed Machine LS400

Model LS400

Overview

The LS400 Stand-On Laser Guided Screed Machine is a high-productivity concrete leveling and screeding machine designed for achieving accurate, consistent and uniform levels across large concrete slabs.

Detailed Description

The LS400 Stand-On Laser Guided Screed Machine is a high-productivity concrete leveling and screeding machine designed for achieving accurate, consistent and uniform levels across large concrete slabs. Its laser-guided control system helps maintain the required concrete elevation while the operator works from the stand-on platform.

With a 4-meter-class screeding width, the LS400 is suitable for large-scale concrete flooring projects where productivity, level accuracy and surface consistency are important. It can help reduce manual screeding work and improve the efficiency of concrete placement and finishing operations.

Key Features

Model: LS400
Type: Stand-On Laser Guided Concrete Screed
Laser Guided Level Control: Helps maintain consistent concrete elevation
Approx. 4 m Working Width: Suitable for large concrete slabs
Stand-On Operator Platform: Provides convenient machine operation
High Productivity: Designed for covering large areas efficiently
Precision Screeding: Helps achieve a more uniform concrete surface
Hydraulic/Mechanical Control System: Depending on configuration
Heavy-Duty Construction: Suitable for demanding construction environments
Reduced Manual Leveling: Minimizes conventional screeding effort
Suitable for Large-Scale Flooring: Ideal for warehouses, industrial floors and commercial projects

Advantages

Accurate Concrete Leveling: Laser guidance helps the machine maintain the required elevation, supporting accurate and consistent slab levels.
High Productivity: The wide screeding system allows the operator to work across a larger concrete area in each pass, improving overall productivity.
Consistent Surface Quality: Controlled screeding helps create a more uniform concrete surface and reduces variations caused by manual leveling.
Reduced Labour Requirement: Mechanized concrete leveling can significantly reduce the physical effort and manpower required for conventional screeding.
Operator Convenience: The stand-on design provides the operator with a practical working position and good visibility of the screeding operation.
Suitable for Large Concrete Floors: The LS400 is particularly useful where large slab areas need to be leveled efficiently and consistently.

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Model	LS400
Machine Type	Stand-On Laser Guided Screed Machine
Structural Type	Stand-On, Four-Wheel Hydraulic Drive
Engine Model	Kohler CH620 / 22 HP Petrol Engine (model variant dependent)
Engine Power	16.4 kW (22 HP)
Fuel Type	Petrol Fuel
Tank Capacity	35 Litres
Leveling Width	2500 mm (2.5 m)
Concrete Thickness	30–200 mm
Leveling Method	Independent Suspension with Centre Rotation
Paving System	Scraper Blade Leveling
Vibration System	Electric Vibrating
Motor Excitation Force	100 kg
Vibration Frequency	50 Hz
Laser Control System	Microcomputer Automatic Laser Control
Laser Compatibility	Leica / Topcon Laser Systems
Drive System	Hydraulic Drive
Walking Speed	0–2.5 km/h
Steering	Hydraulic Steering
Dimensions (L × W × H)	3155 × 3175 × 1910 mm
Operating Weight	Approx. 740-860 kg
*Specifications may vary slightly depending on the engine option and manufacturer configuration.

Applications & Uses

Industrial concrete flooring
Warehouse floors
Factory floors
Commercial buildings
Parking structures
Large concrete slabs
Distribution centers
Airport flooring
Road construction
Concrete pavements
Logistics centers
Large-scale RCC flooring
