Bar Bending

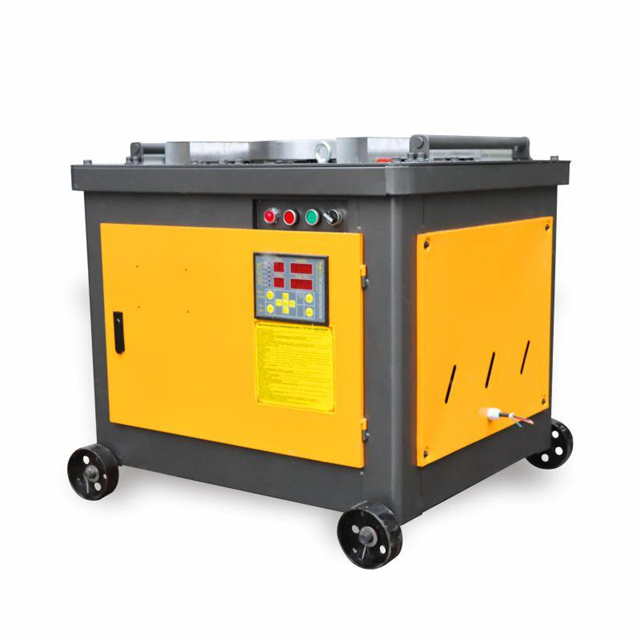

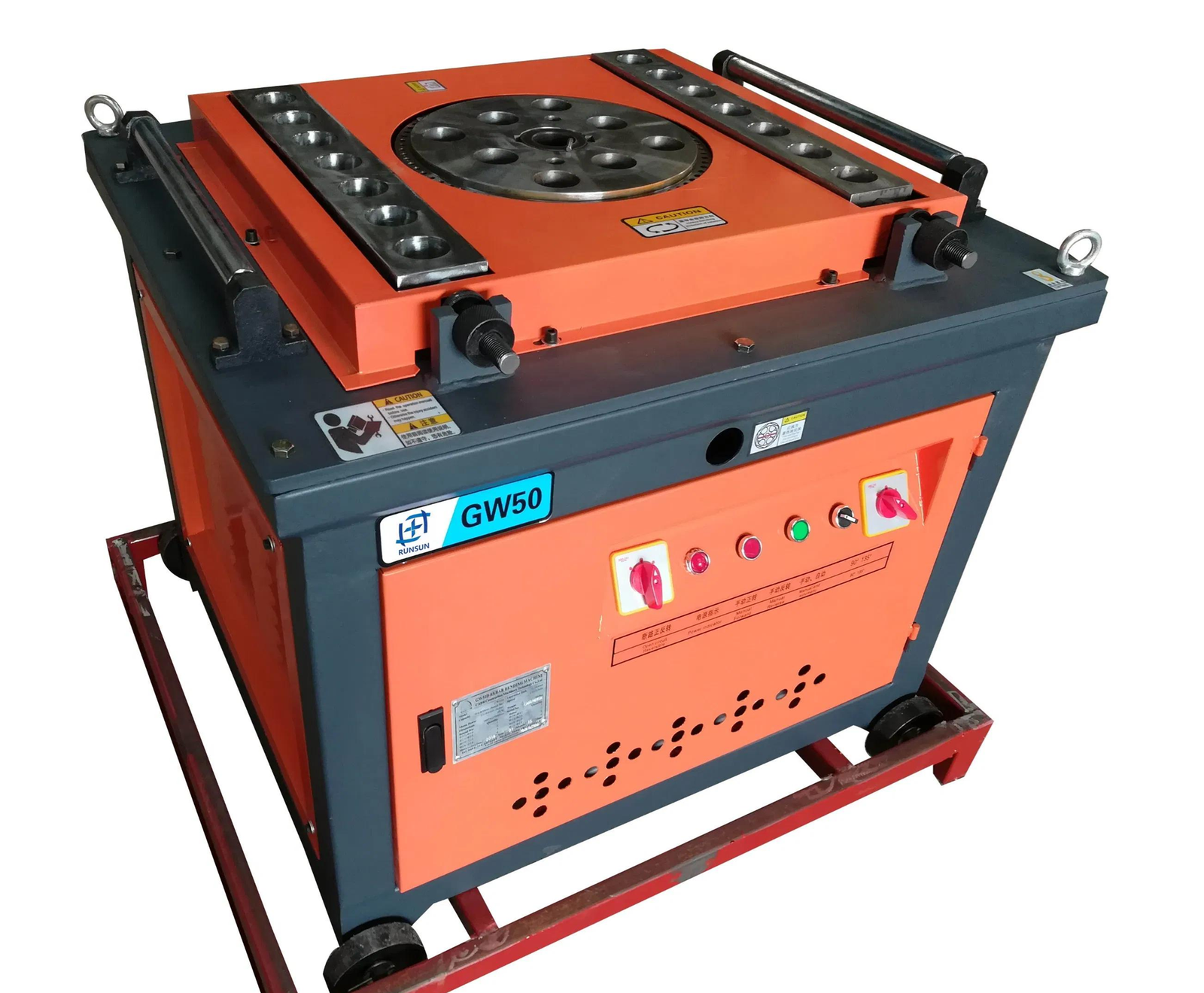

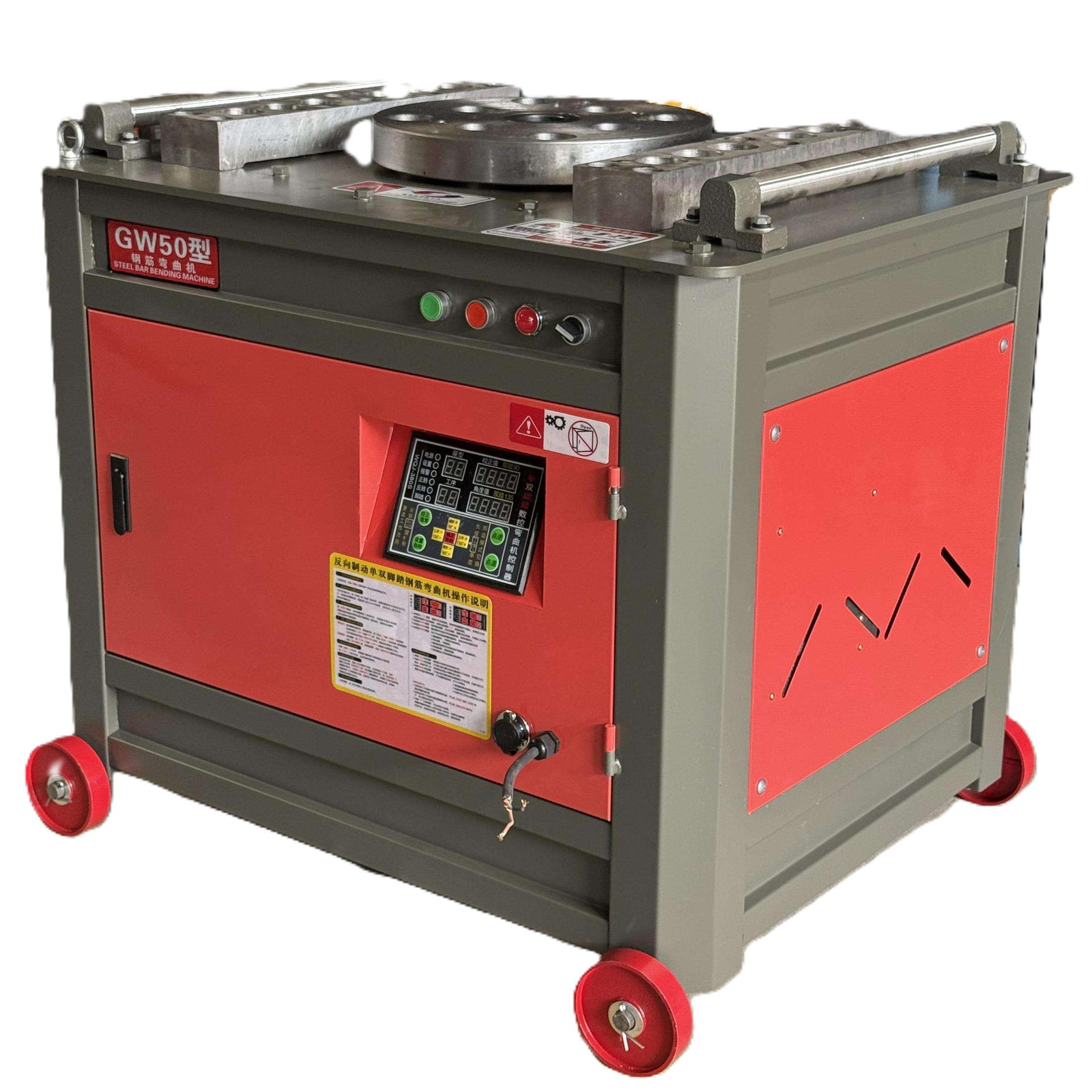

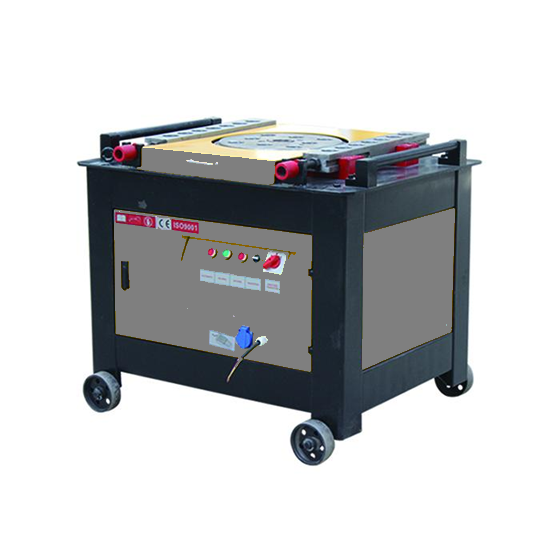

Semi-Automatic Steel Bending Machine GW50

Model GW50

Detailed Description

The Semi-Automatic Steel Bending Machine GW50 is a robust and high-performance rebar processing machine designed for accurate bending of TMT bars, deformed bars, round bars and reinforcement steel used in construction and infrastructure projects. Engineered with a heavy-duty gearbox, hardened bending disc and powerful electric motor, the GW50 delivers consistent bending accuracy, high productivity and reliable operation under demanding site conditions.

Ideal for construction companies, rebar fabrication yards, precast concrete plants, bridge construction, highways and industrial projects, the GW50 is capable of bending reinforcement bars up to 50 mm diameter, making it a preferred choice for medium to large-scale steel processing.

Key Features

Bends TMT bars up to 50 mm
Powerful 4 kW (~5.4 HP) electric motor
Heavy-duty gear-driven transmission
Hardened alloy steel bending disc and pins
Adjustable bending angles from 0° to 180°
High bending precision and repeatability
Rugged steel body for industrial use
Low vibration and smooth operation
Easy maintenance and long service life
Suitable for continuous production

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Specification	Details
Model	GW50
Machine Type Semi	Automatic Steel Bar Bending Machine
Automation Grade Semi	Automatic
Power Source	Electric
Power Supply	415 V, 50 Hz, Three Phase
Motor Type	Copper Winding Brake Motor
Motor Power	4 kW (≈5.4 HP)
Motor Speed	1440 RPM
TMT Bar Capacity 6	40 mm
Round Bar Capacity 6	50 mm
Working Disc Diameter	400 mm
Working Disc Speed 10	16 RPM
Bending Angle 0°	360° Adjustable
Drive System Heavy	Duty Mechanical Gearbox
Machine Weight Approx. 400	420 kg
Machine Dimensions	Approx. 1020 × 745 × 840 mm

Applications & Uses

High-rise building construction
Bridge construction
Flyovers
Metro rail projects
Highway construction
Dams
Power plants
Precast concrete factories
Rebar processing centers
Industrial fabrication workshops
Infrastructure development
RCC reinforcement fabrication
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
