Construction Builder Hoist 1000kg
Model BH1000
Detailed Description

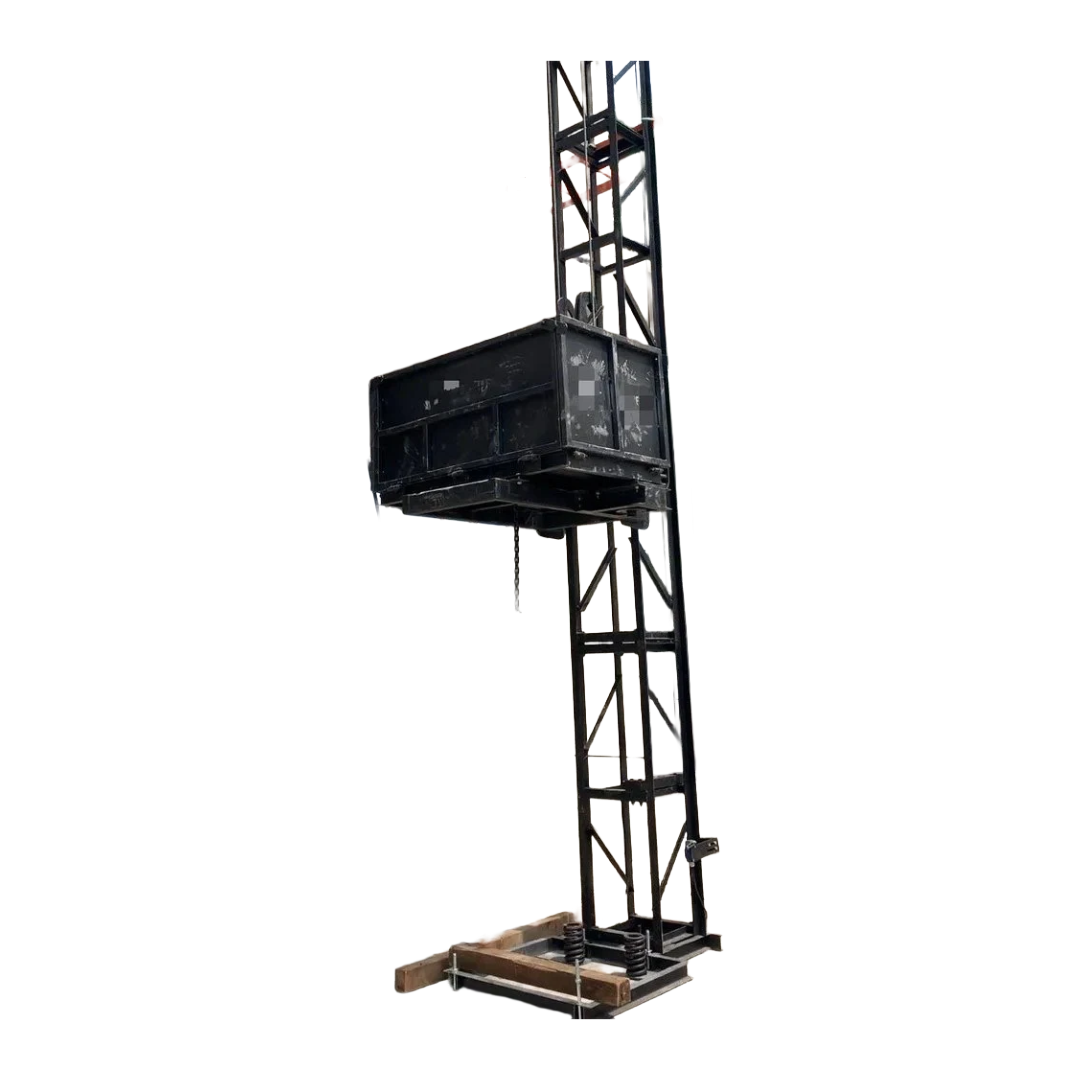

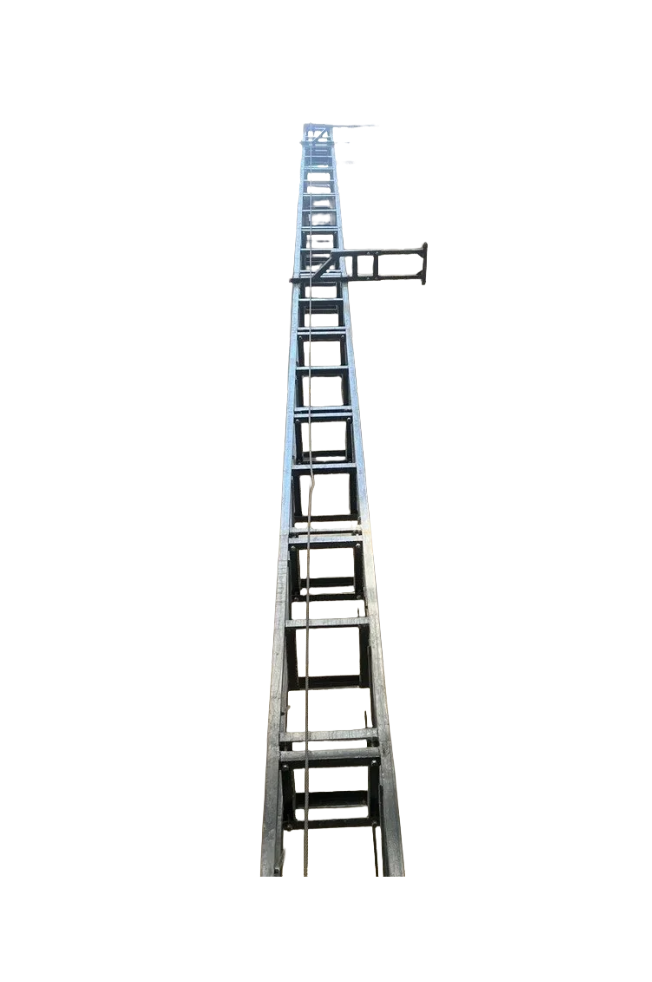

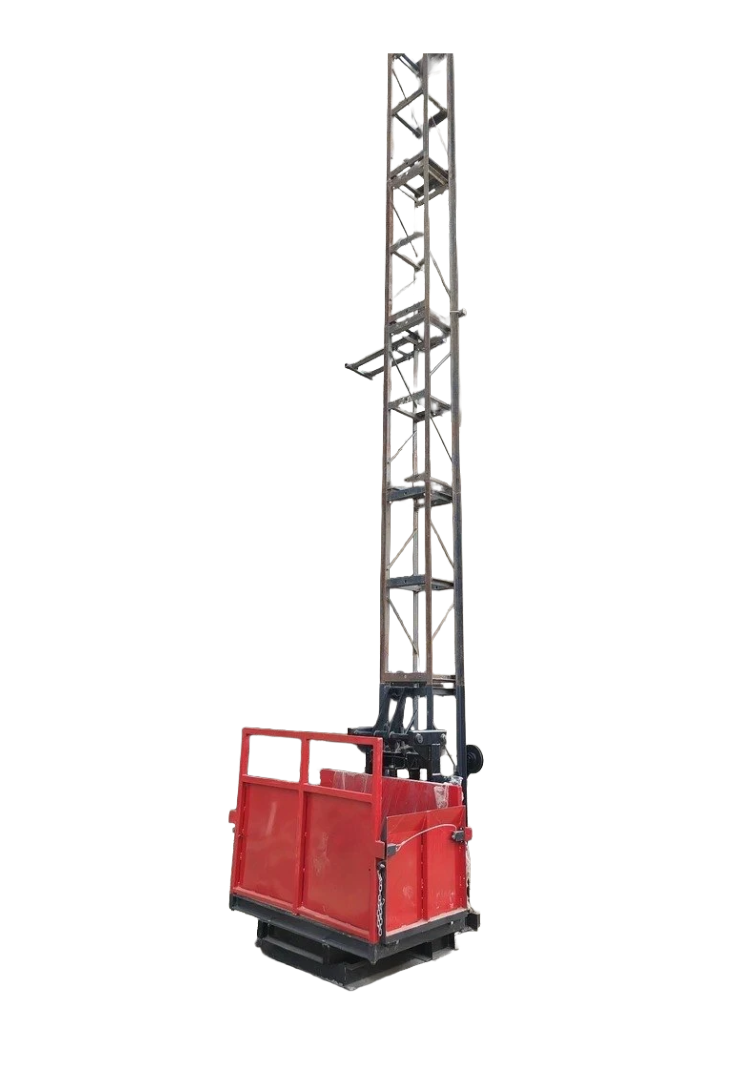

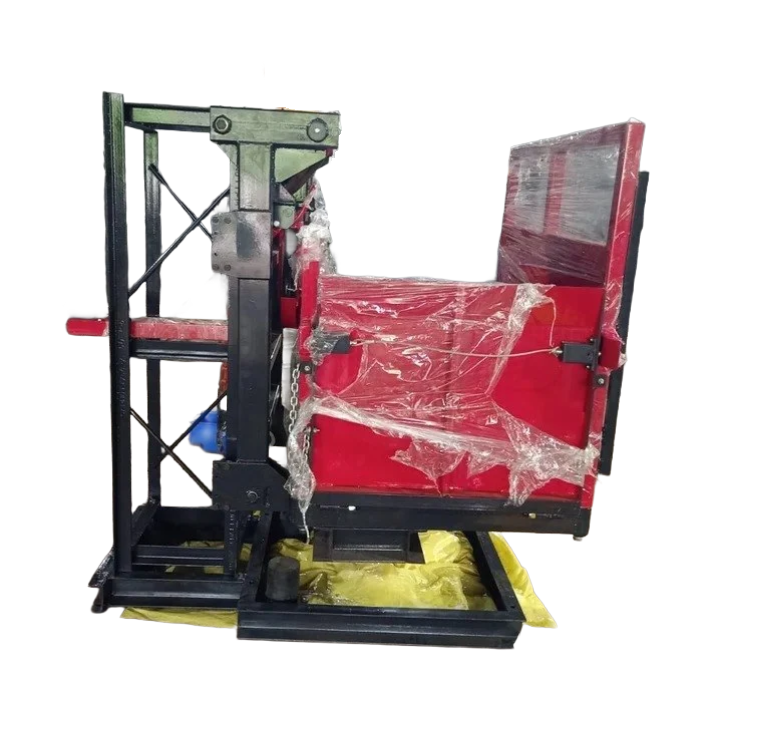

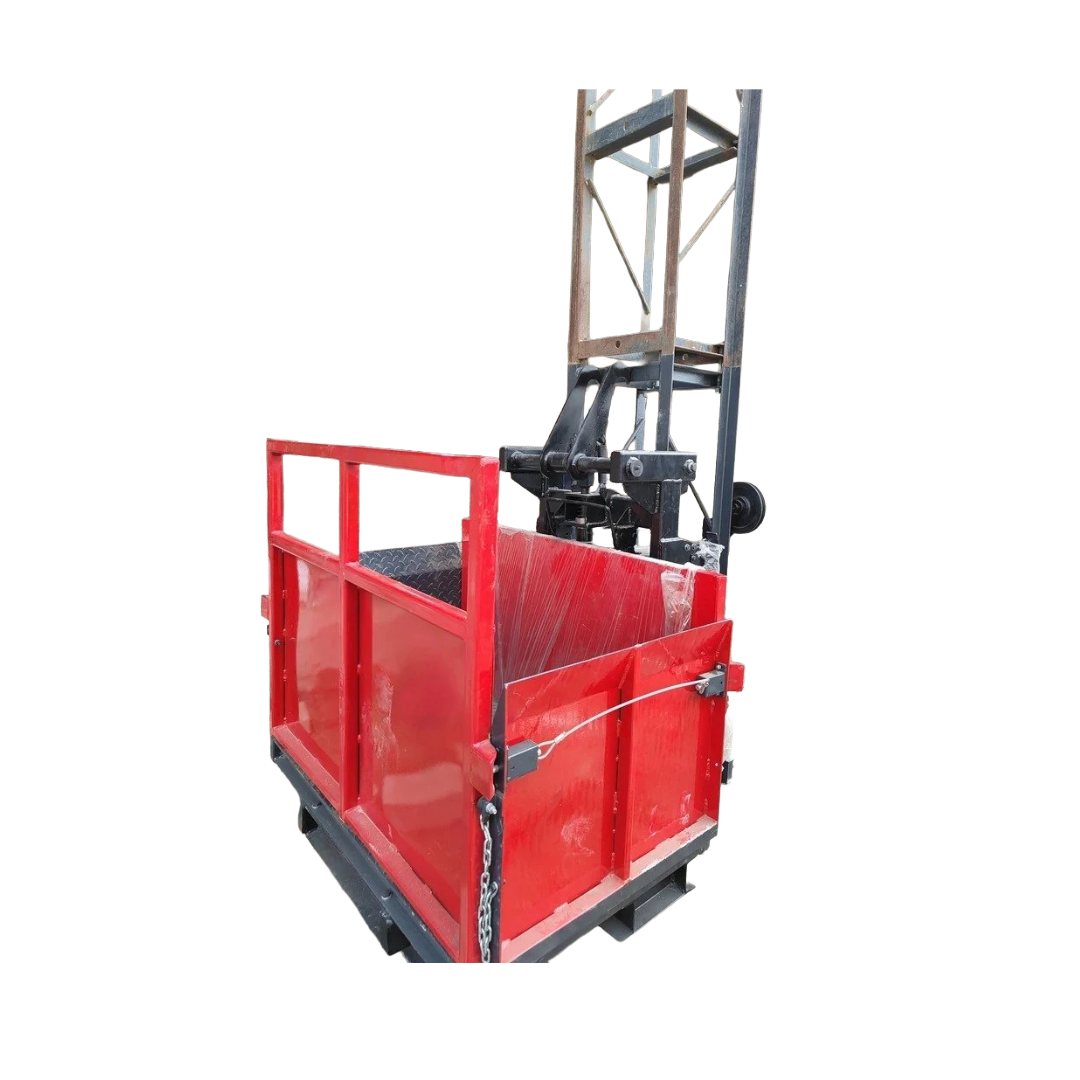

A tower-type Builder Hoist (Material Hoist) installed inside a reinforced concrete building under construction. It features a vertical square mast, guide rail, and material trolley/cage, designed exclusively for lifting construction materials such as bricks, cement, concrete buckets, steel bars, tiles, scaffolding components, and other building materials between floors. It is not intended for transporting personnel.
Delivery
Pan India
Support
24/7
Get Best Quote
Submit your requirement & get custom pricing.
Technical Specifications
| Lift Type | Builder Hoist |
|---|---|
| Load Capacity | 1000 kg |
| Lifting Height | 75 m |
| Drive Type | Electric Motor |
| Speed | 20 m/min |
| Bucket or Cage Size | 1×1 m |
| Power Supply | 415 V 3 Phase |
| Structure Material | Mild Steel |
| Control Type | Remote Control |
| Safety Features | Limit Switch, Emergency Brake |
Applications & Uses
- Residential building construction
- Commercial buildings
- Multi-storey construction
- Industrial buildings
- Warehouses
- Infrastructure projects
- Factory construction
- Renovation projects
- Precast construction
- General building-material handling
