Concrete Screed Vibrator | Other Vibratory Machine

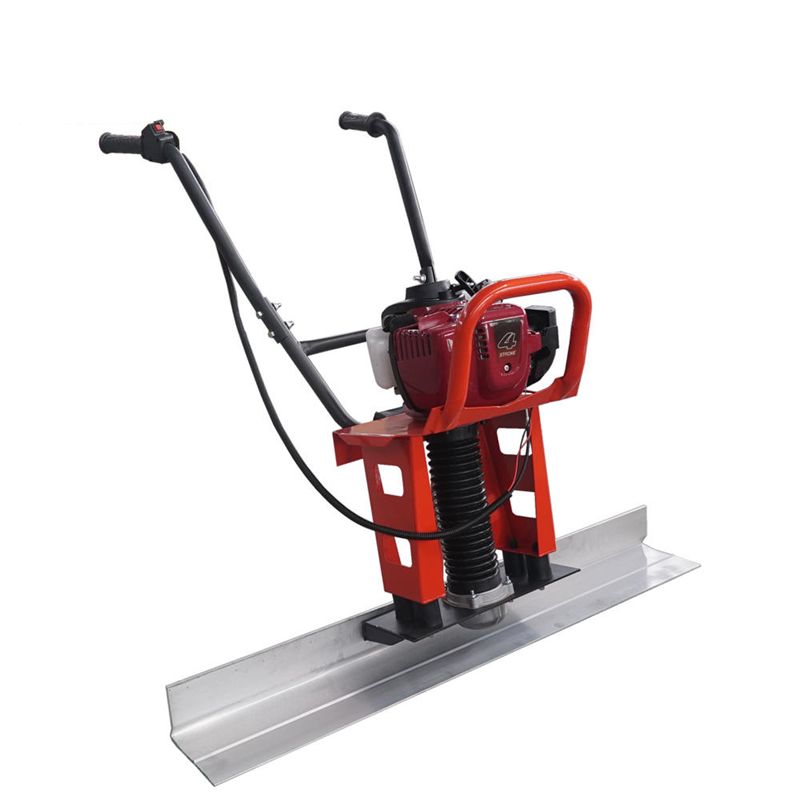

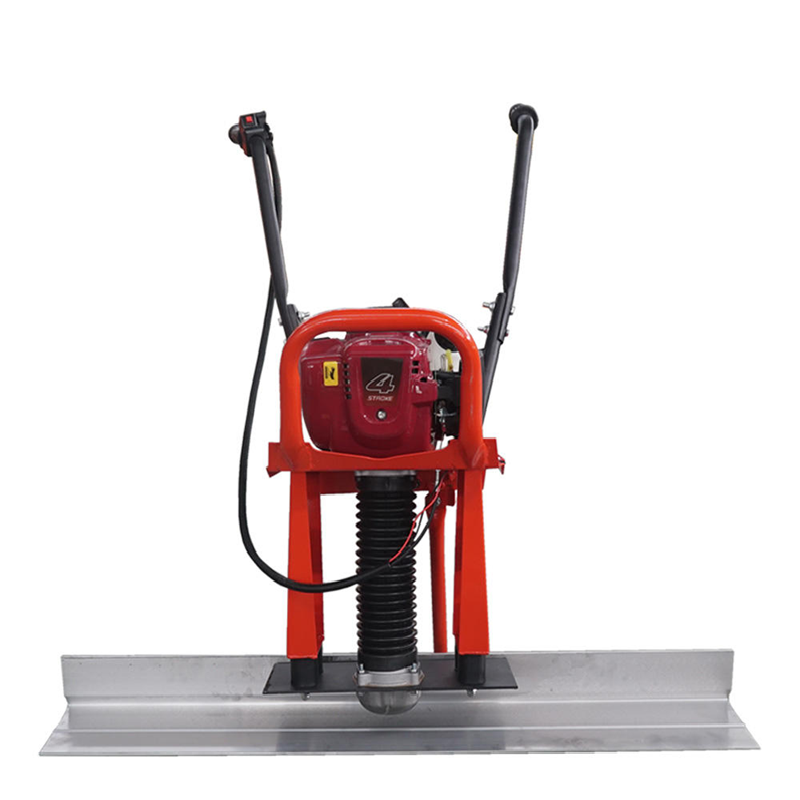

Concrete Screed Board Vibrator with Honda GX35

Model MX300

Call for Price WhatsApp
Overview

A Screed Board Vibrator, also known as a vibrating screed, is a construction tool used to level and compact freshly poured concrete to ensure a flat and smooth surface.

Detailed Description

A Screed Board Vibrator, also known as a vibrating screed, is a construction tool used to level and compact freshly poured concrete to ensure a flat and smooth surface. It's especially helpful for large slabs like floors, pavements, and industrial platforms.

🔧 Key Functions:

Leveling: Ensures the concrete surface is even by spreading and smoothing it.

Compaction: Uses vibrations to eliminate air pockets and help the concrete settle more densely.

Surface Finishing: Reduces the need for excessive manual troweling later.

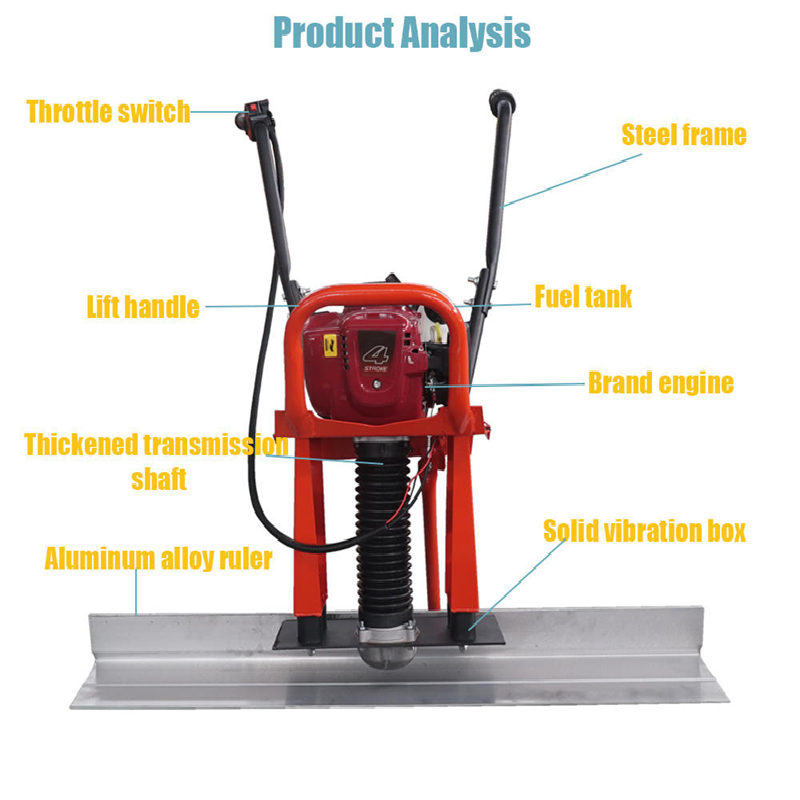

🧱 Components:

Vibrating Unit: Usually powered by an electric motor or engine.

Screed Board/Blade: A long metal plank (often aluminum or steel) that rests on the concrete and vibrates to level it.

Handles or Controls: For the operator to guide the screed.

⚙️ Types:

Hand-held Vibrating Screeds – Operated manually, ideal for smaller jobs.

Truss Screeds – Modular and used for larger surfaces.

Roller Screeds – Uses a rotating roller to level concrete, sometimes with vibration added.

Warranty Default By Manufacturer
Delivery Pan India
Support During Office Hours
Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Model MX300
Screed Width 2m/3m/4m (Optional)
Engine Honda GX35
Power 1.1 kW/1.6 Hp
Speed 5200 rpm
Vibration Force 1.8 kN
Width 70 cm
Fuel tank capacity 0.65 L
Weight 22 kg
Dimension 740x410x410 mm
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***

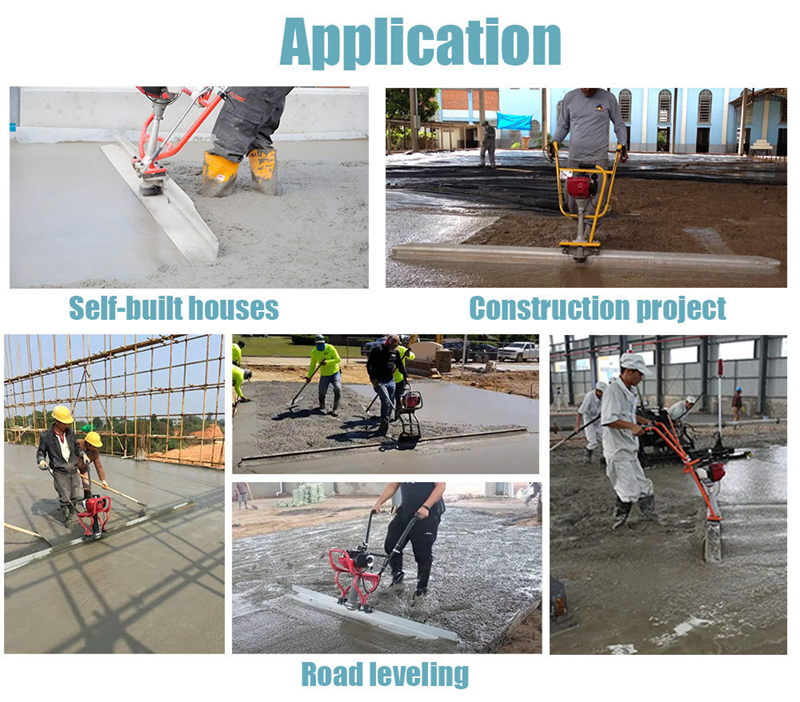

Applications & Uses

  • Industrial flooring
  • Warehouse floors
  • Factory floors
  • Concrete roads
  • Pavements
  • Parking areas
  • RCC slabs
  • Residential buildings
  • Commercial construction
  • Airport pavements
  • Bridge decks
  • Large concrete slab construction
