Briggs & Stratton Gasoline Engine

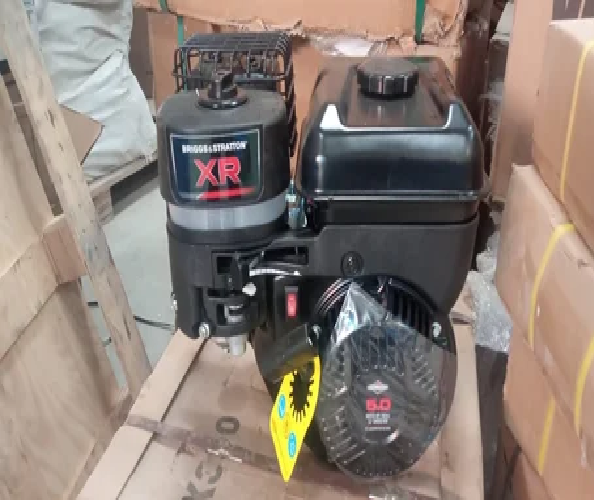

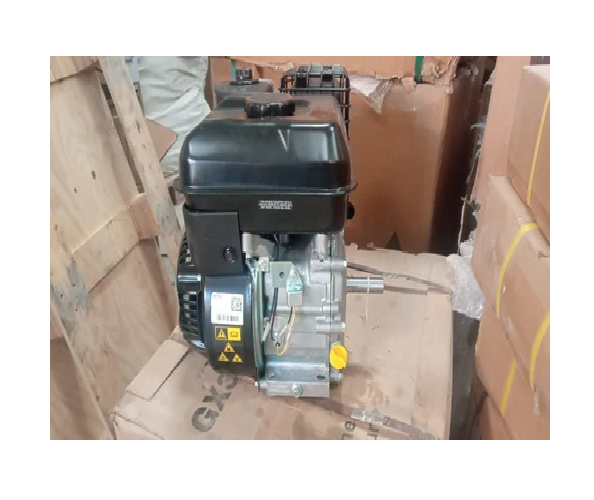

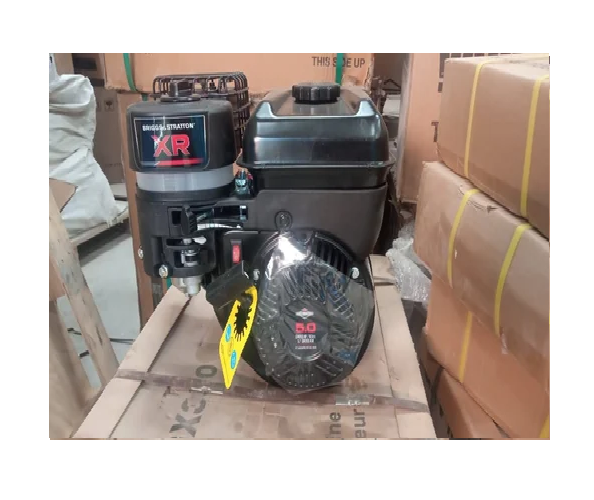

Briggs & Stratton 5 HP Petrol Engine

Model .

Overview

Briggs & Stratton 5 HP Petrol Engine is a reliable 163cc, 4-stroke OHV horizontal-shaft engine designed for construction, agricultural, industrial and landscaping equipment.

Detailed Description

The Briggs & Stratton 5 HP Petrol Engine is a compact and dependable 4-stroke gasoline engine designed for a wide range of construction, agricultural, landscaping and industrial applications. The current horizontal-shaft version uses a 163 cc single-cylinder OHV engine and produces 5.0 HP (3.7 kW) at 3,600 RPM.

Key Features

Engine Type: 4-stroke, single-cylinder, air-cooled OHV
Power: 5.0 HP / 3.7 kW @ 3,600 RPM
Displacement: 163 cc
Bore × Stroke: 68 × 45 mm
Configuration: Horizontal shaft
Starting: Manual choke / recoil starting
Fuel: Petrol / gasoline
Fuel Tank Capacity: Approx. 3.0–3.1 L
Oil Capacity: Approx. 0.6 L
Cast-Iron Cylinder Sleeve: For improved durability
Mechanical Governor: Helps maintain engine speed under varying loads
Electronic Ignition: Designed for easy starting
Dual Ball Bearings: Supports durability and engine life

Advantages

Reliable Power: Provides 5 HP of gross power for a wide range of equipment.
Durable Construction: The XR 750 incorporates a cast-iron cylinder sleeve and forged crankshaft for durability.
Efficient Operation: The 163 cc engine offers a practical balance between power, size and fuel consumption.
Easy Starting: Electronic ignition and manual starting controls are designed for convenient starting.
Versatile Horizontal Shaft: The horizontal-shaft configuration makes it suitable for many construction and industrial machines.

Additional Details

1062 / XR 750 Single Cylinder, 4-stroke, air-cooled, OHV (Overhead Valve) with 2 years Warranty by Default Manufacturer

Warranty Default By Manufacturer

Delivery Pan India

Support During Office Hours

Get Best Quote

Submit your requirement & get custom pricing.

Request Quote

Technical Specifications

Power Rating	5 hp Engine
Displacement	163 cc
Number Of Cylinders	One
Application	Construction Equip, Concrete Mixer, Power Sprayer, Pump Set, Agriculture, Generator
Starting System	Recoil Start
Cooling System	Air Cooled
Power	5 HP
Fuel Type	Petrol
Dry Weight	15.5 kg
Net Torque	10.17 (Nm) @ 2600 rpm (Gross)
Engine Type	Single Cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Fuel System	Carburetor
Engine Speed/rpm	3600 rpm
Lubrication System	Splash
Oil Capacity	600 ml
Brand	Briggs & Stratton (USA)
Bore x Stroke	68 x 45 mm
Dimensions	259 x 370 x 334 mm

Applications & Uses

Plate Compactors
Concrete Mixers
Concrete Power Trowels
Concrete Cutters
Water Pumps
Small Vibratory Rollers
Tamping & Compaction Equipment
Agricultural Equipment
Landscaping Machinery
Generators
Industrial Machinery
Construction Equipment
Other engine-driven equipment
***Specifications may vary depending on the manufacturer and configuration. Kindly reach out to our sales team for specific product’s availability ***
