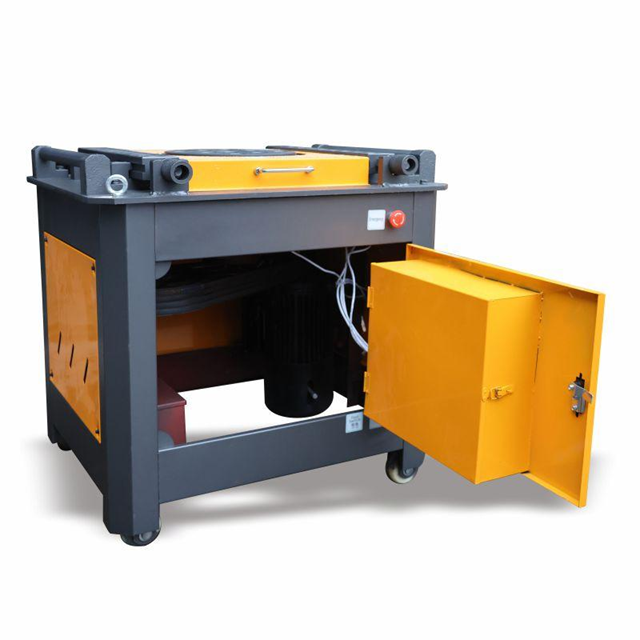

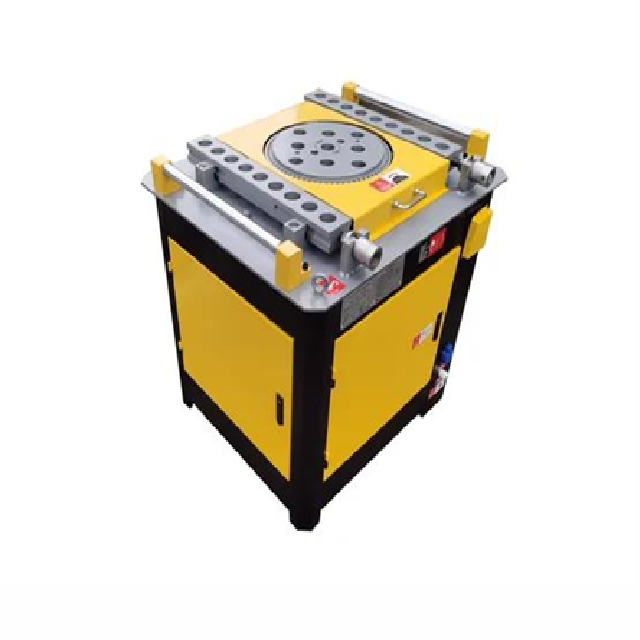

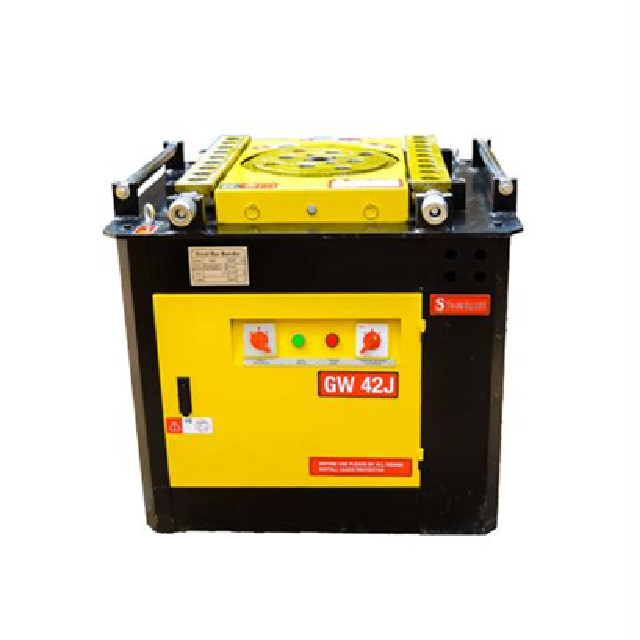

Automatic TMT Bar Bending Machine GW42J
Model GW42J
Detailed Description
The GW42J Automatic TMT Bar Bending Machine is a robust and efficient reinforcement-steel processing machine designed for bending 6–32 mm TMT and rebar. Powered by a 5 HP / 3.7 kW three-phase electric motor, the machine combines a heavy-duty gearbox, precision bending disc and control panel to provide accurate and repeatable bends. It is ideal for RCC columns, beams, slabs, foundations, bridges, precast structures and general construction reinforcement work.">">
Delivery
Pan India
Support
24/7
Get Best Quote
Submit your requirement & get custom pricing.
Technical Specifications
| Model | GW42J |
|---|---|
| Max Bending Capacity | 32 mm |
| Automation Grade | Automatic |
| Motor Power | 5 HP (3.7 kW) |
| Machine Type | Bar Bender |
| Max Bending Angle | 180 degree |
| Max Bending Radius | 100 mm |
| Operation Mode | Semi-Automatic |
| Power Source | Electric |
| Motor Speed | 1440rpm |
| Body Material | MS |
| Bending Speed | 20 rpm |
| Weight | 340 kg |
| Voltage | 415 V |
| *Specifications may vary slightly depending on the manufacturer and platform configuration. | . |
Applications & Uses
- Beam reinforcement
- Column reinforcement
- Foundation reinforcement
- Slab reinforcement
- Stirrup bends
- U-shaped bars
- L-shaped bars
- Hooks
- Angular bends
- General RCC reinforcement shapes
